Manufacturer: Daiichi Electronics Co., Ltd.

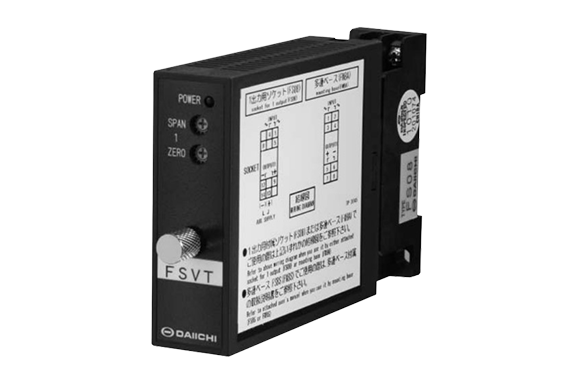

Model: FSVT

Features

• Designed with a compact size and high dielectric strength.
• Complete isolation for 1 minute withstand voltage of AC 2,000 V (50/60 Hz) between input, output, auxiliary power, and outer case.
• Constant voltage / constant current output type, no adjustment required if used within the rated load resistance range.
• Power application status can be confirmed by LED. Zero and span adjustments are possible. (±2% adjustable)
• Supports true RMS calculation, and can be used with distorted waveforms and SCR waveforms.

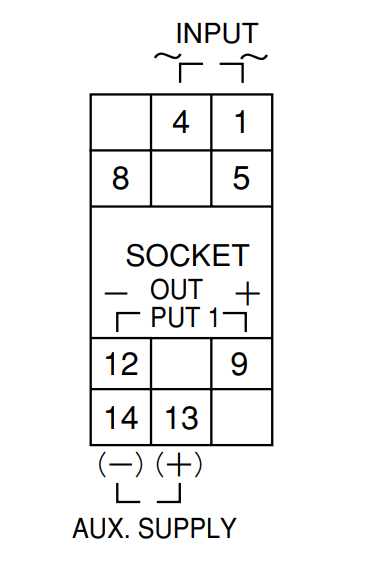

Wiring Diagram
