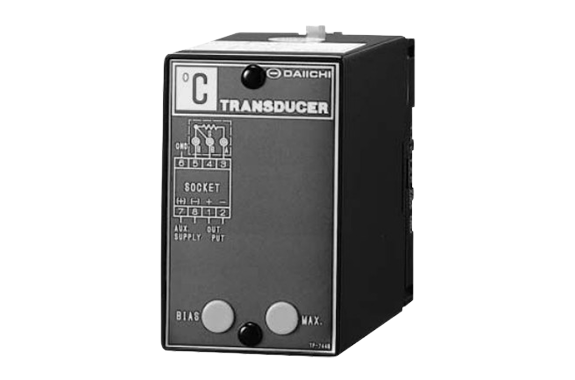

Manufacturer: Daiichi Electronics Co., Ltd.
Model: RHTP2-1A7A1

Features

• Constant voltage and constant current output.
• Complete isolation between input, output, auxiliary power, and ground with a withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Impulse withstand voltage: 5 kV, 1.2/50 μs between the electrical circuit and ground, guaranteed for three iterations each for positive and negative polarity.
• Equipped with surge protection between output lines (2,000 A, 8/20 μs, positive and negative polarity), enabling direct transmission to remote locations.

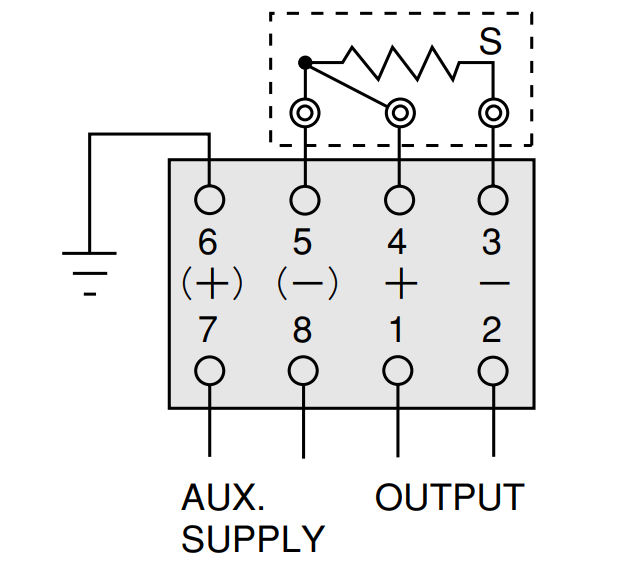

Wiring Diagram

Note: The polarity inside the parentheses applies when using a DC auxiliary power supply.
