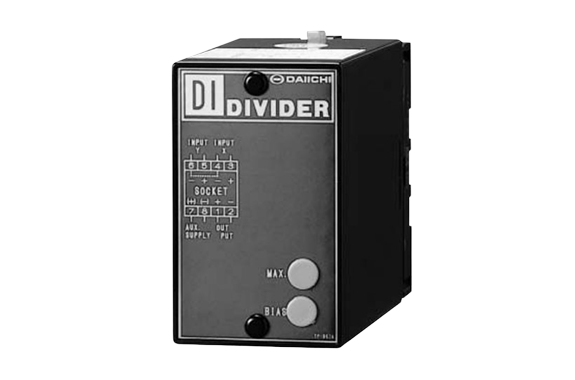

Manufacturer: Daiichi Electronics Co., Ltd.
Model: DITP1-C7F5

Features

• Constant voltage and constant current output.
• Withstand voltage: 1,500 V AC (50/60 Hz) for 1 minute between the entire electrical circuit and the enclosure, and between input/output and auxiliary power.
  Also, 1,500 V AC (50/60 Hz) for 1 minute between input and output.
• No specification for Y input below 20%.
• The negative terminals of X input and Y input are internally connected.
• Differential input is not supported.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between electrical circuit and enclosure).

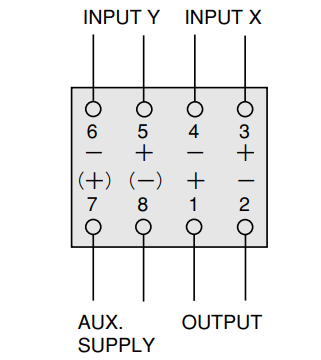

Wiring Diagram
