Manufacturer: Daiichi Electronics Co., Ltd.
Model: FWPP

Features

• High voltage resistance design in a compact size
  Input, output, auxiliary power, and external box are insulated from each other with AC 2000V (50/60Hz) for 1 minute.
• Equipped with output operation display function
  The output operation status can be confirmed using the red output monitor LED on the main unit.
• Supports switching of input signals
  The INPUT switch on the front of the main unit allows switching between no-voltage contact input (N) and voltage pulse input (V).
• Supports circuit redundancy
  By selecting a dual-input specification, the system can support circuit redundancy.

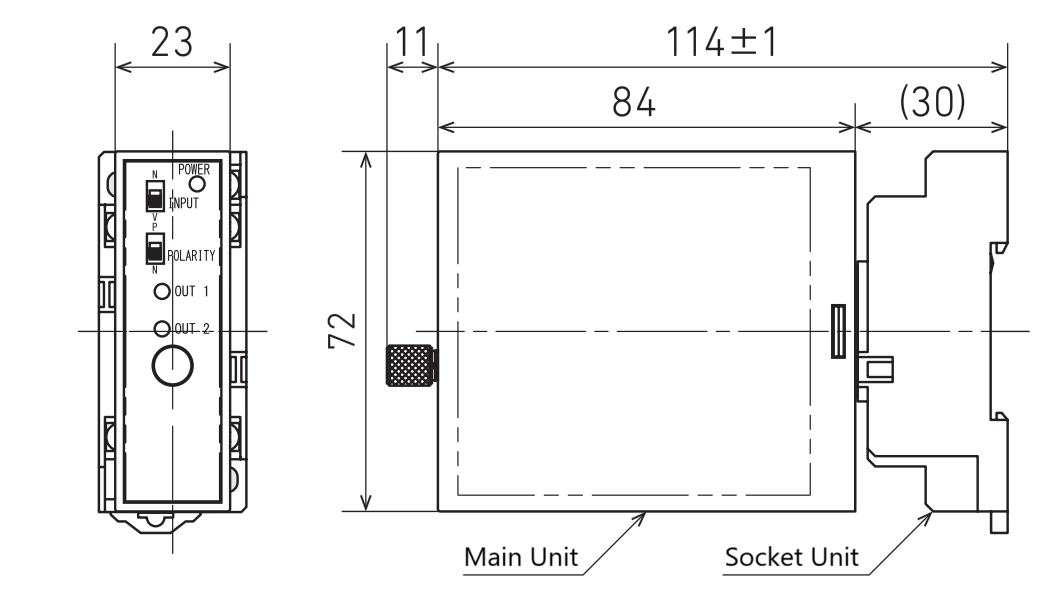

External Dimensions

• Main Unit: Approx. 130g
• Socket Unit: Approx. 50g
