Manufacturer: Daiichi Electronics Co., Ltd.

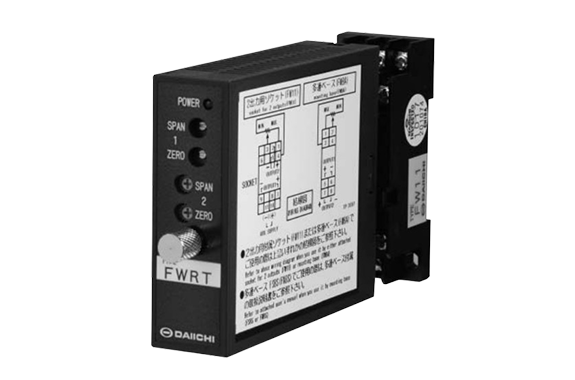

Model: FWRT

Features

• Compact size with high dielectric strength design.
• Dielectric strength between input, output, auxiliary power, and enclosure: AC 2000 V (50/60 Hz) for 1 minute.
• Dielectric strength between output channels: AC 500 V (50/60 Hz) for 1 minute.
• Supports potentiometer resistance from 100 Ω to 10 kΩ.
• As a constant voltage/current output type, no adjustment is required when used within the specified load resistance range.
• Power-on status can be confirmed with an LED.

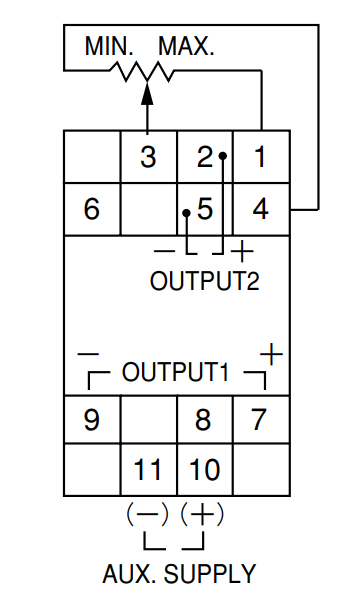

Wiring Diagram
