Manufacturer: Daiichi Electronics Co., Ltd.

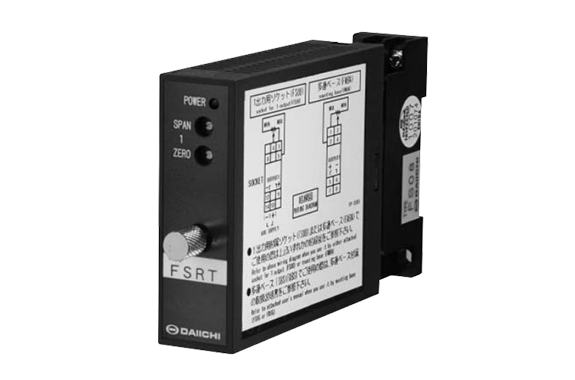

Model: FSRT

Features

• Compact size with high dielectric strength design.
• Input, output, auxiliary power, and case are mutually isolated with AC 2,000 V (50/60 Hz) withstand voltage for 1 minute.
• Compatible with potentiometers of resistance values ranging from 100 Ω to 10 kΩ, regardless of the resistance selected.
• Constant voltage and constant current output type, so no adjustment is required when used within the rated load resistance range.
• Power status can be checked via LED indicator.

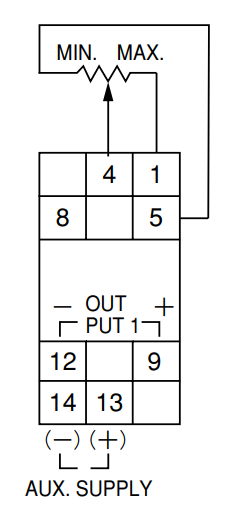

Wiring Diagram
