Manufacturer: Daiichi Electronics Co., Ltd.

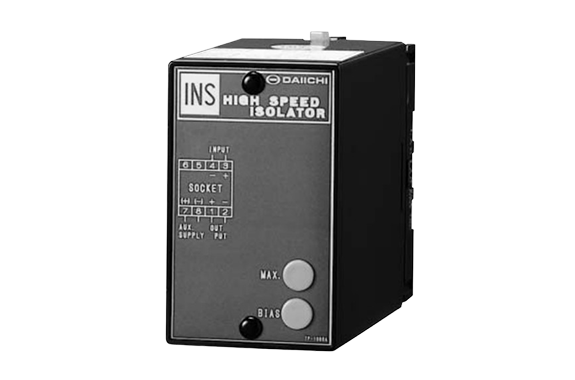

Model: HSTP1-C7F1

Features

• Equipped with an ultra-high-speed isolator.
• Variable voltage and constant current output.
• Complete isolation between input, output, auxiliary power, and enclosure (ground) with a withstand voltage of AC 1,500 V (50/60 Hz) for 1 minute.
• Equipped with surge protection between output lines (2,000 A ±8/20 μs, positive and negative polarity).
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between the electrical circuit and the enclosure).

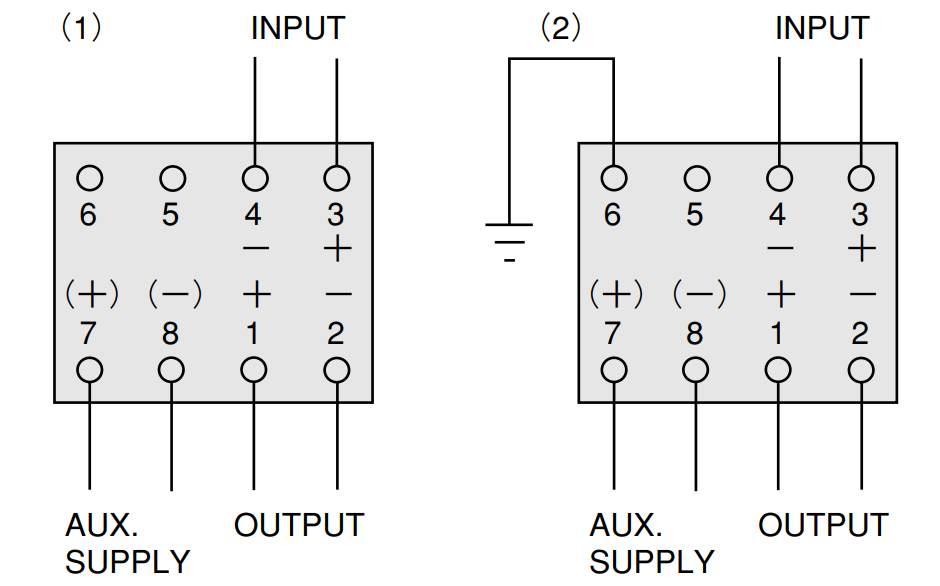

Wiring Diagram
