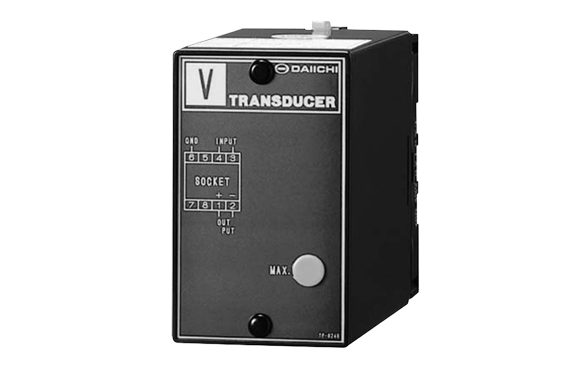

Manufacturer: Daiichi Electronics Co., Ltd.
Model: VTP2-53

Features

• This type does not require an auxiliary power supply. Constant current output type.
• Input, output, and ground are completely isolated with a withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Equipped with primary and secondary electrostatic shielding to protect output-side equipment from surges on the input side.
• Impulse withstand voltage: guaranteed for three iterations each for the electrical circuit and between ground: 5 kV, 1.2/50 μs, positive and negative polarity.

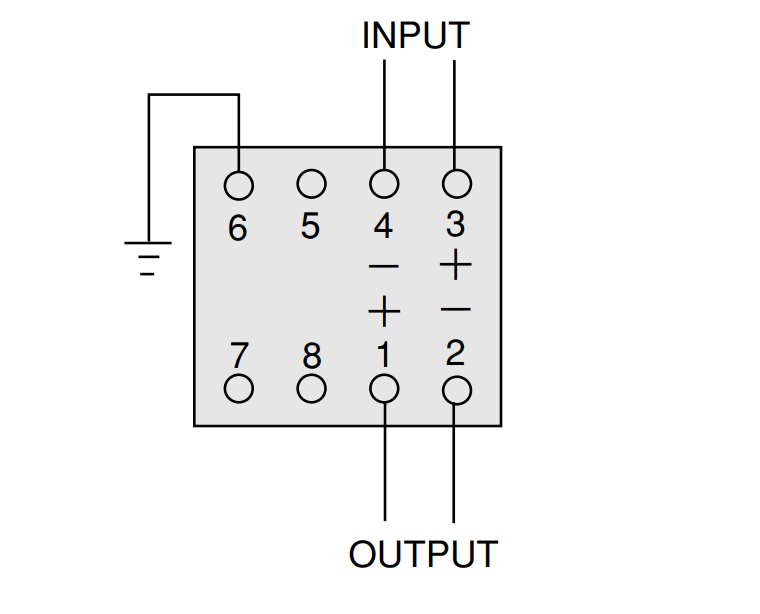

Wiring Diagram
