Manufacturer: Daiichi Electronics Co., Ltd.

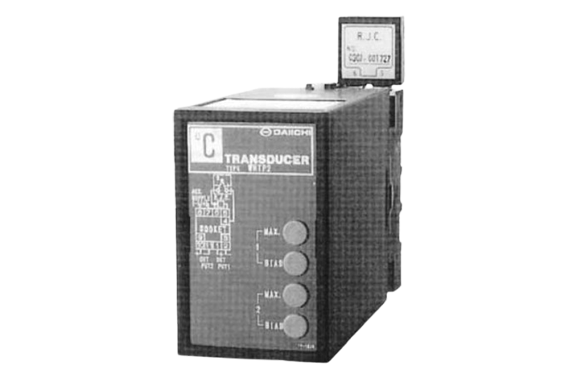

Model: WHTP2-J1H51

Features

• Constant voltage and constant current output.
• Complete insulation between input, output, auxiliary power supply, and enclosure with a withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Withstand voltage between output 1 and output 2: AC 1,000 V.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, for both positive and negative polarity, guaranteed for 3 cycles between the electrical circuit and enclosure.

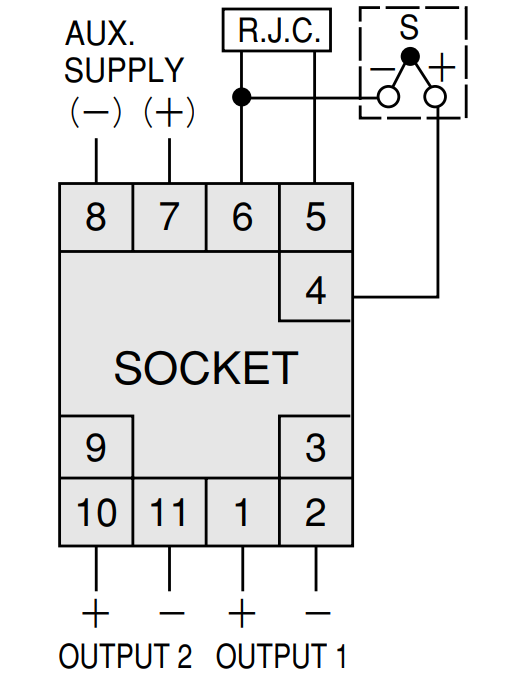

Wiring Diagram
