Manufacturer: Daiichi Electronics Co., Ltd.

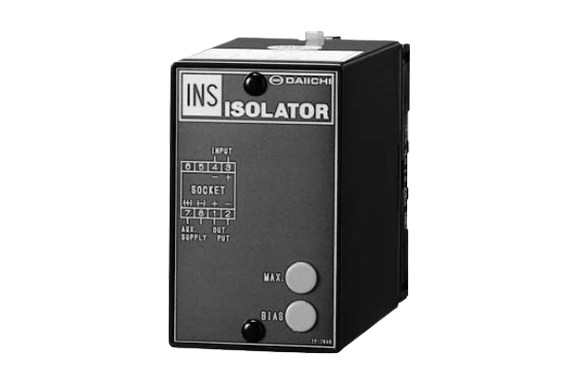

Model: TP2-C7F5

Features

• Provides constant voltage and constant current output.
• Complete insulation for 1 minute at AC 2,000V (50/60Hz) between input, output, auxiliary power, and enclosure (earth).
• Guarantees impulse withstand voltage of 5kV 1.2/50 μs with both polarities, 3 times (between electrical circuit and enclosure).
• Equipped with output line surge protection (2,000A, ±8/20 μs).

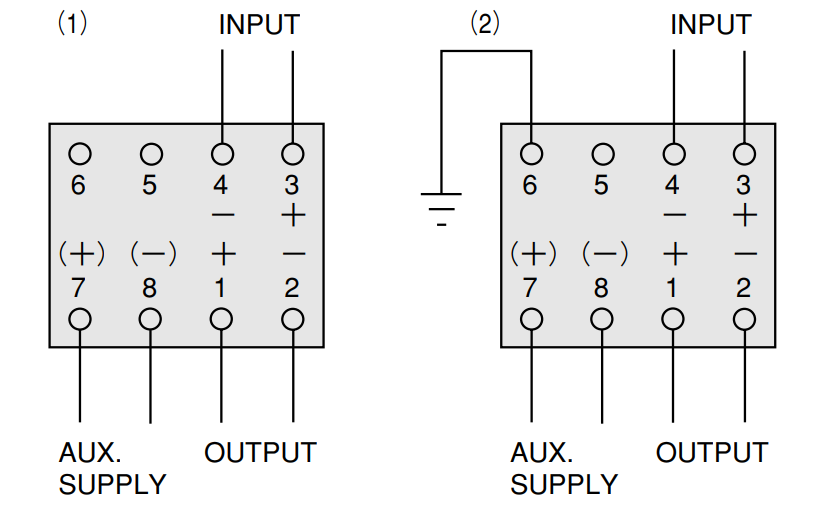

Wiring Diagram

Nlote: The polarity inside the parentheses applies when the auxiliary power supply is DC.
