Manufacturer: Daiichi Electronics Co., Ltd.

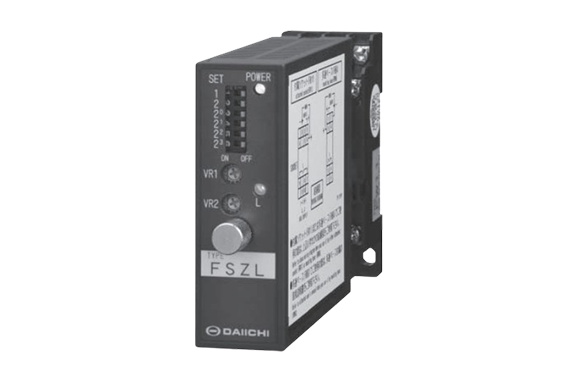

Model: FSZL

Features

• Compact size with high withstand voltage design.
• The withstand voltage between input, output, auxiliary power supply, and enclosure is AC 2000V (50/60 Hz) for 1 minute insulation.
• Power application status can be confirmed by LED. (LED color: green)
• If the input voltage drops below 3V, the output enters the detection state regardless of the input.
• Socket is included as standard. (If using a multi-base, socket is not required. Please specify.)
• Socket name: FW11

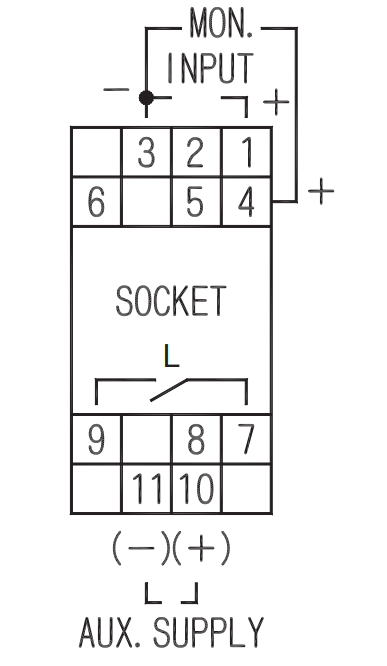

Wiring Diagram
