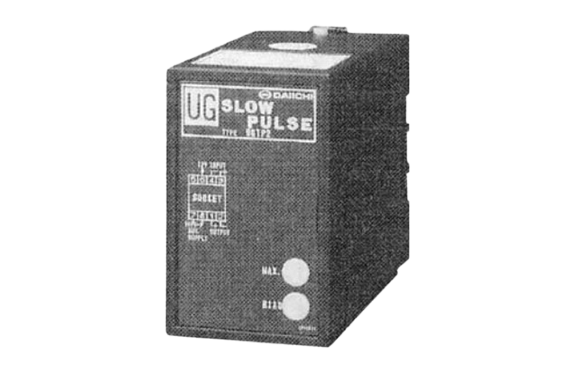

Manufacturer : Daiichi Electronics Co., Ltd.
Model: UGTP2-1F1

Features

• Tolerance is ±0.25%, making this a high-precision transducer.
• Input, output, and power are designed with AC 2,000 V withstand voltage for safe use.
• Equipped with a function that gradually slows the output when the input pulse stops.
• Includes a low input frequency cut function (if no cut value is specified, it cuts below 0.5% and recovers at 1%).
• Uses well-designed components and reduces internal heat generation, resulting in a long-lasting product.
• Optional switch available for selecting output: DC 4–20 mA / DC 1–5 V.

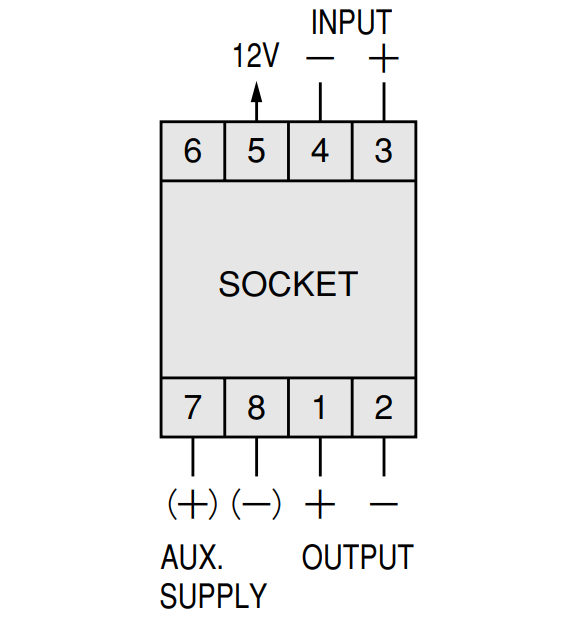

Wiring Diagram
