Manufacturer: Daiichi Electronics Co., Ltd.
Model: WVETP2-3H51

Features

• Constant voltage, constant current output.
• Uses a hybrid IC with true RMS method, allowing input of distorted waveforms or SCR waveforms.
• Insulation withstand voltage:
  Input, output, auxiliary power, and case are mutually insulated at AC 2,000 V (50/60 Hz) for 1 minute with complete insulation.
• Withstand voltage between Output 1 and Output 2: AC 1,000 V.
• Impulse withstand voltage:
  All electrical circuits and case are guaranteed to withstand 5 kV, 1.2/50 μs impulse voltage for both positive and negative polarities, tested three times each.

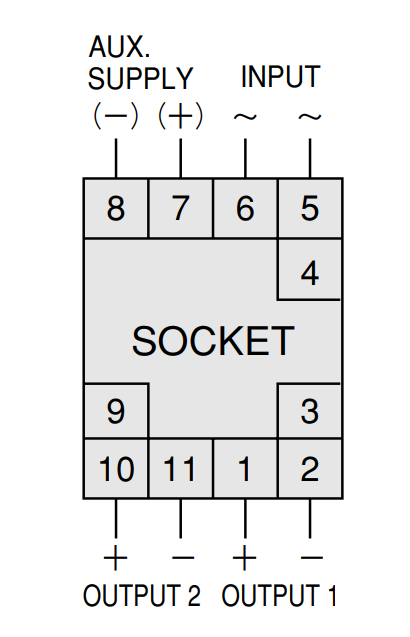

Wiring Diagram
