Manufacturer: Daiichi Electronics Co., Ltd.

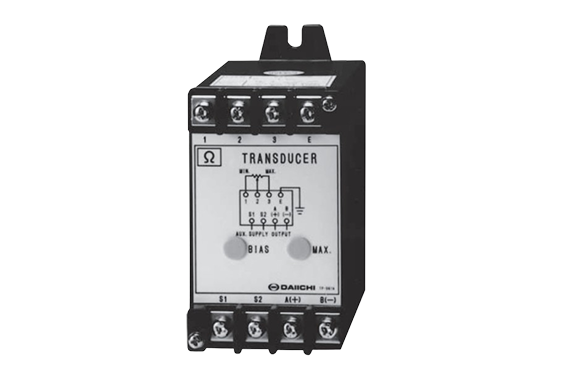

Model: RTT2-82A / RTT2-83A

Features

• Satisfies withstand voltage of AC 2,000V (between input, output, auxiliary power supply, and earth).
• Guarantees impulse withstand voltage of 5kV 1.2/50 μs with both positive and negative polarity, 3 times (between electrical circuits and earth).
• Equipped with output line surge protection (2,000A ±8/20 μs), enabling direct transmission to remote locations.
• Provides constant voltage and constant current output.

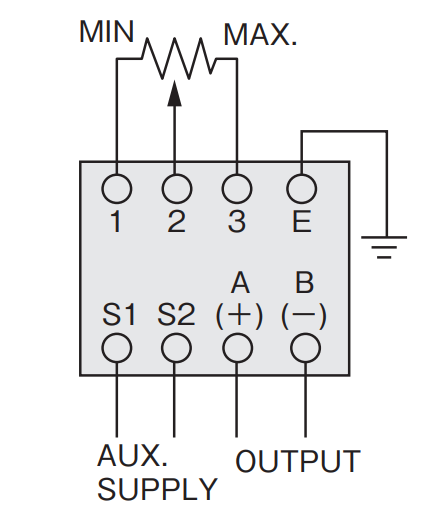

Wiring Diagram

Note: If the auxiliary power supply is DC, connect S1 to (+) and S2 to (−).
