Manufacturer: Daiichi Electronics Co., Ltd.

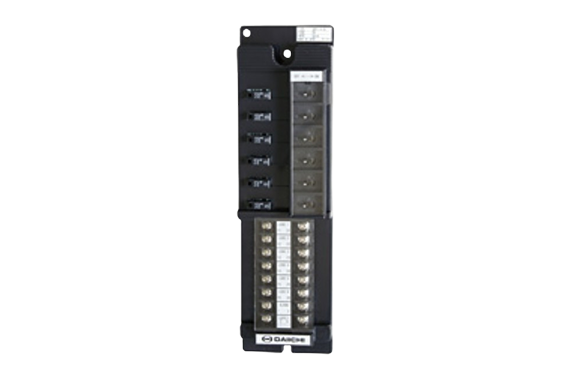

Model: SBP2-6

Features

• Each circuit has a built-in power switch and fuse.
• When the fuse is blown, an alarm contact (1a parallel contact) is output.
  A blown fuse is displayed in white in the indicator hole.
• The fuses can be replaced externally.
• The weight has been reduced by 70% and the mounting space by 30% compared to the previous model ^* , making it more compact.
  Weight: 1kg → 300g, mounting space width: 100mm → 70mm

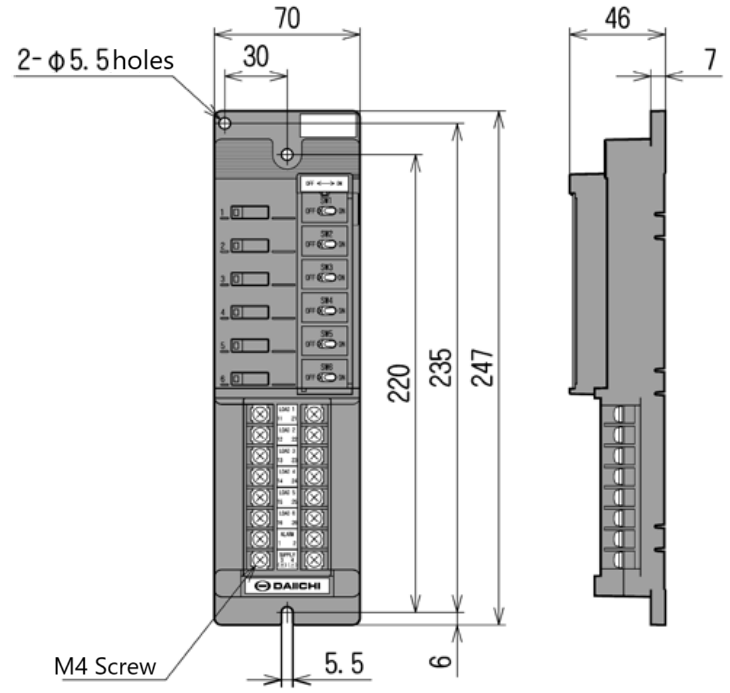

External Dimensions
