Manufacturer: Daiichi Electronics Co., Ltd.

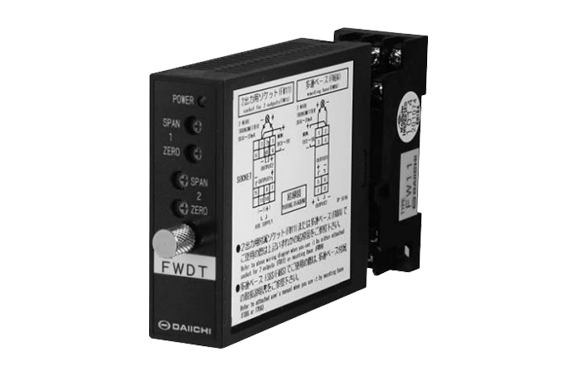

Model: FWDT

Features

• Compact design with high dielectric strength.
• Isolation ratings:
  Input/Output/Auxiliary/Enclosure: AC 2,000 V, 1 min (50/60 Hz)
  Between outputs: AC 500 V, 1 min (50/60 Hz)
• Equipped with distributor and signal conversion functions for 2-wire transmitters.
• Includes short-circuit protection for transmitter power (23–30 mA).
• Monitoring function: 4–20 mA input can be converted to 1–5 V (±0.1%) via terminals 3–4 on socket FW11.
• Constant voltage/current output – no adjustment needed within rated load range.
• Power-on LED for status indication.
• Independent zero/span adjustments for outputs 1 and 2 (±2% adjustable).

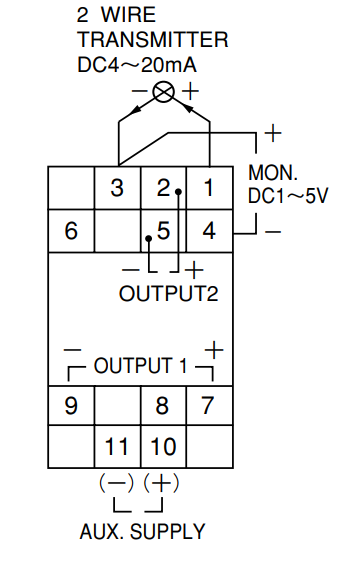

Wiring Diagram
