Manufacturer: Daiichi Electronics Co., Ltd.
Model: SRDRS-1 Series (SRDRS-11/14)

Features

• A 2-wire transmitter distributor equipped with both distribution and signal converter functions.
• Equipped with a square root extraction function; output is proportional to the square root of the input.
• Provides constant voltage and constant current output.
• Complete insulation for 1 minute at AC 1,500V (50/60 Hz) between input and output.
• Surge protection between input and output lines (2,000A, 8/20 µs, positive/negative polarity).
  Note: Excludes connector-integrated output.

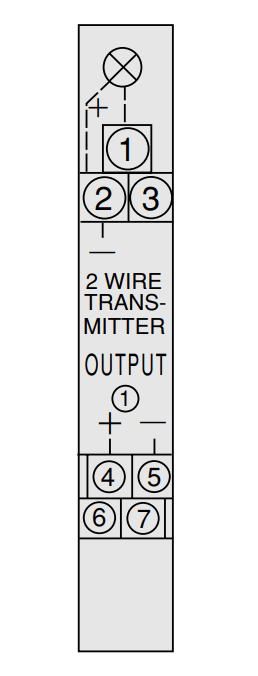

Wiring Diagram
