Manufacturer: Daiichi Electronics Co., Ltd.

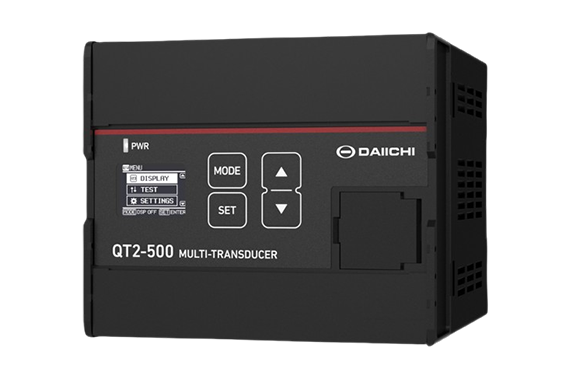

Model: QT2-500

Features

• Compliant with IEC 60688:2012 (transducers) and IEC 62053:2003 (energy meters).
• The phase wiring method, voltage rating, and current rating can be switched by setting. Supports 440V direct connection.
• Each unit comes standard with 10 analog inputs, 2 pulse inputs, and RS485 communication.
• By connecting the USB port on the front to a computer, can write and read settings using special software.
• The high-contrast OLED panel allows to change settings and display measurement items.
• The phase angles of voltage and current are displayed on the front panel, helping identify incorrect wiring.

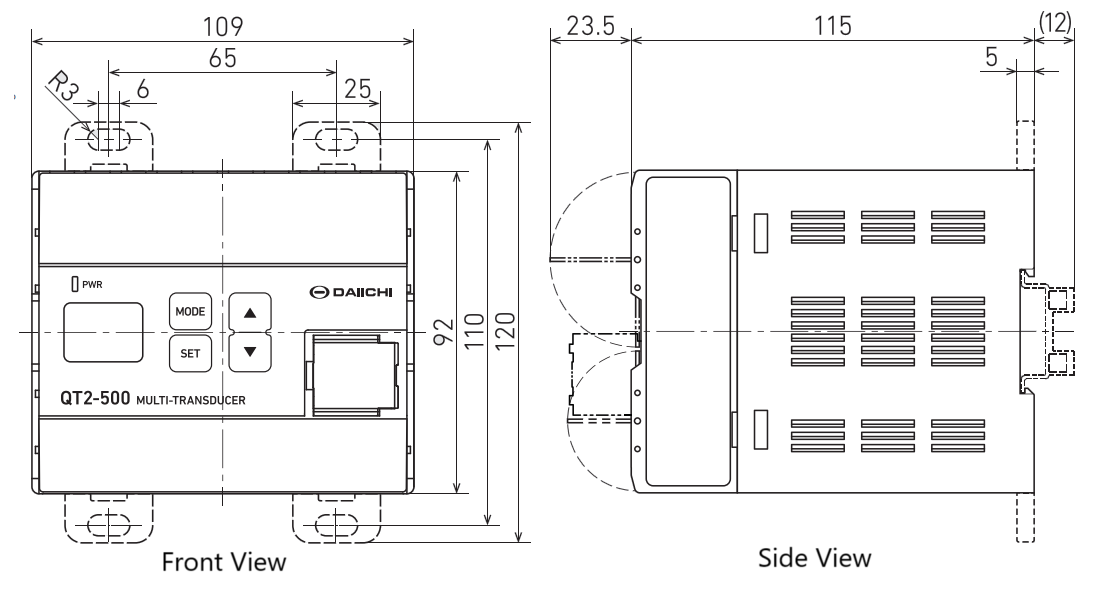

External dimensions (Unit : mm)
