Manufacturer: Daiichi Electronics Co., Ltd.

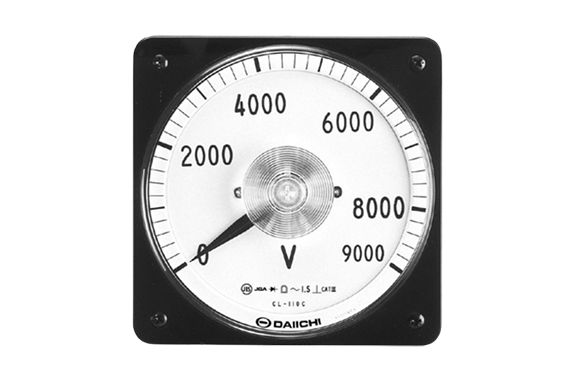

Model: WVL-110NC-12

Features

• High-quality, high-performance measuring instrument.
• 65mm square size is ideal for equipment with limited panel space.
• If the above rating is exceeded, please use external voltage transformers and current transformers for 110V, 5A (1A) meters.
• Usable voltage range: For 110V, 90–130V; For 220V, 180–260V.

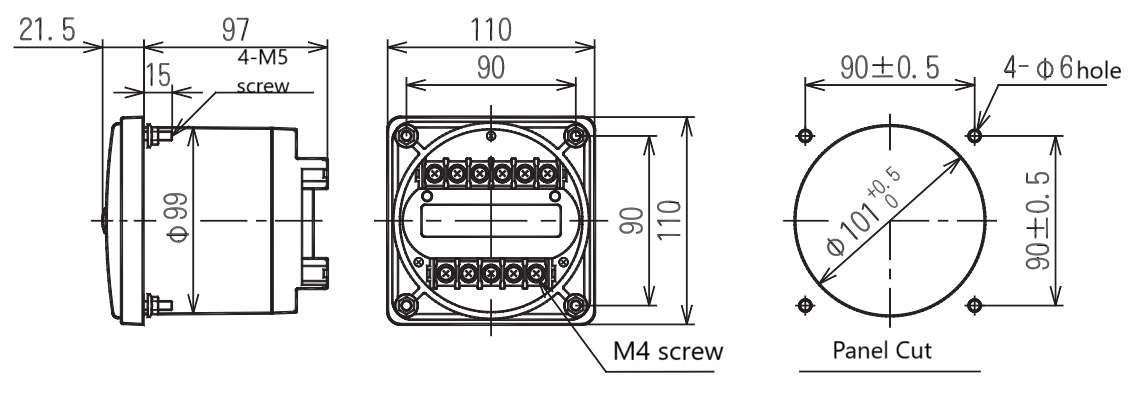

External Dimensions (Unit: mm)
