Manufacturer: Daiichi Electronics Co., Ltd.

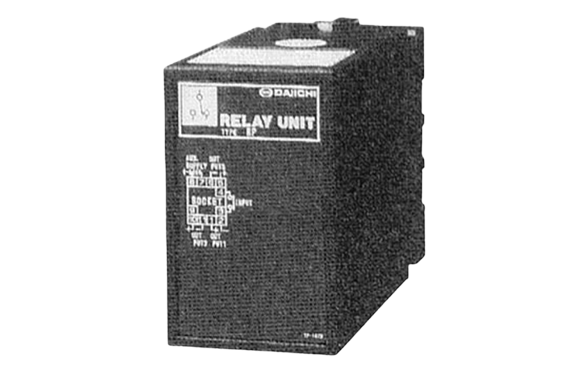

Model: RP-2A1

Features

• Isolation between selection terminals, auxiliary power, and external case: AC 2,000V (50/60Hz) for 1 minute.
• When switching current signals, an internal M.B.B contact-type relay is used to prevent open output terminals.
• Impulse withstand voltage is guaranteed at 5kV, 1.2/50 μs (positive/negative polarity), tested 3 times between all electric circuits and the external case.

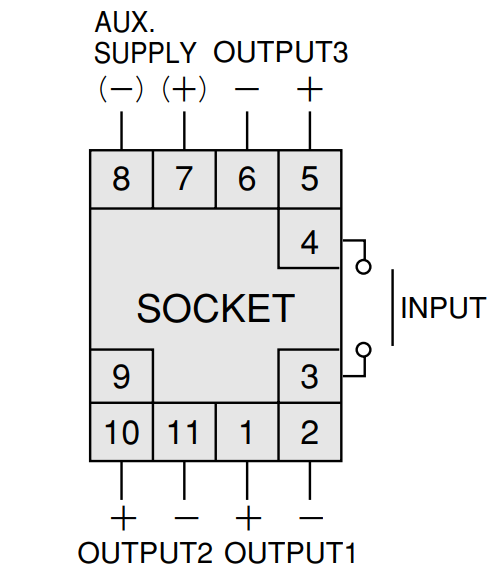

Wiring Diagram
