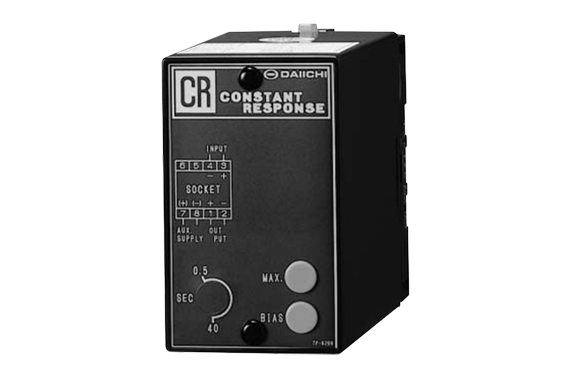

Daiichi Electronics Constant Response Uniform Speed Response CRTP-C6F5
Manufacturer: Daiichi Electronics Co., Ltd.
Model: CRTP-C6F5
Features
- Time setting can be performed from the front panel. Constant voltage and constant current output.
- Withstand voltage: 2,000 V AC (50, 60 Hz) for 1 minute between the entire electrical circuit and the enclosure.
Also, 1,500 V AC (50, 60 Hz) for 1 minute between input/output and the auxiliary power supply.
There is no insulation between input and output. - Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations between the electrical circuit and the enclosure.

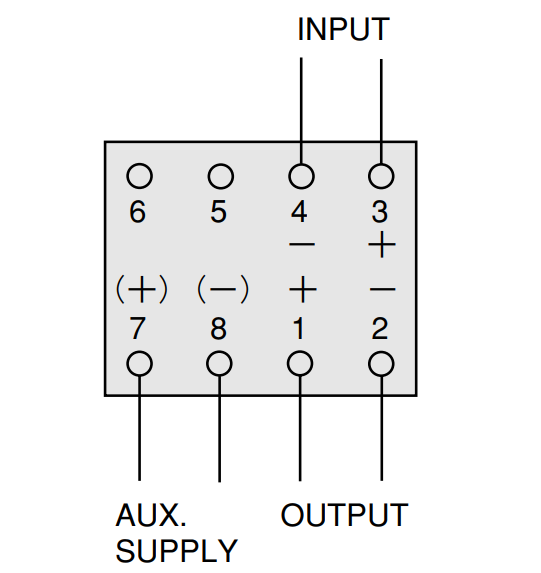

Wiring Diagram
Note: The polarity inside the parentheses applies when using a DC auxiliary power supply.
