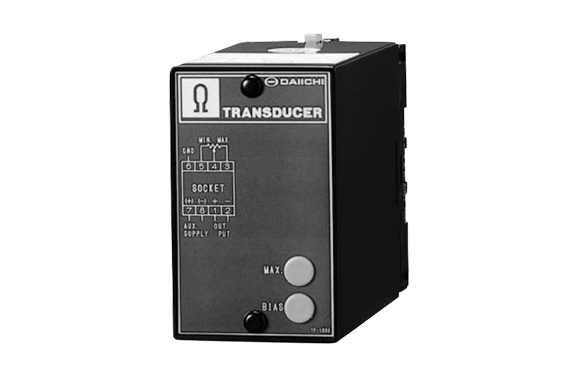

Manufacturer: Daiichi Electronics Co., Ltd.
Model: RTP2-ZF2

Features

• Supports selectable potentiometer resistance from 100 Ω to 10 kΩ. (RTP2-Z type)
• Constant voltage and constant current output.
• Complete isolation between input, output, auxiliary power, and ground with a withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Impulse withstand voltage: 5 kV, 1.2/50 μs between the electrical circuit and ground, positive and negative polarity, guaranteed for three iterations.
• Equipped with surge protection between output lines (2,000 A, 8/20 μs, positive and negative polarity), allowing direct transmission to remote locations.

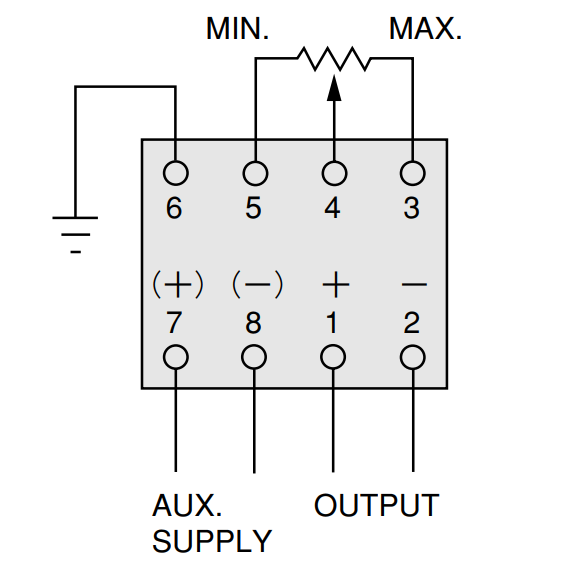

Wiring Diagram
