Manufacturer: Daiichi Electronics Co., Ltd.

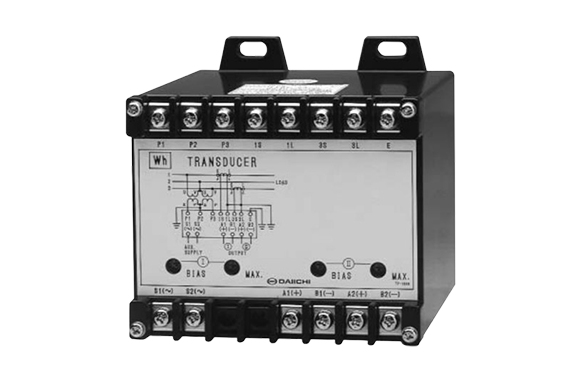

Model: WHP-83A / WVHP-83A

Features

• Accurately measures power and apparent power even with distorted waveforms.
• Capable of measuring integrated power over a short period of several seconds.
• Allows selection of different types of pulse output signal formats.
• Optional analog output available.
  (Analog output corresponds to instantaneous power.)
  The analog output includes surge protection (2,000A, ±8/20 μs), enabling long-distance signal transmission.
• Equipped with an output limiter circuit, which limits output to about 1.5 times the rated value even during excessive input.

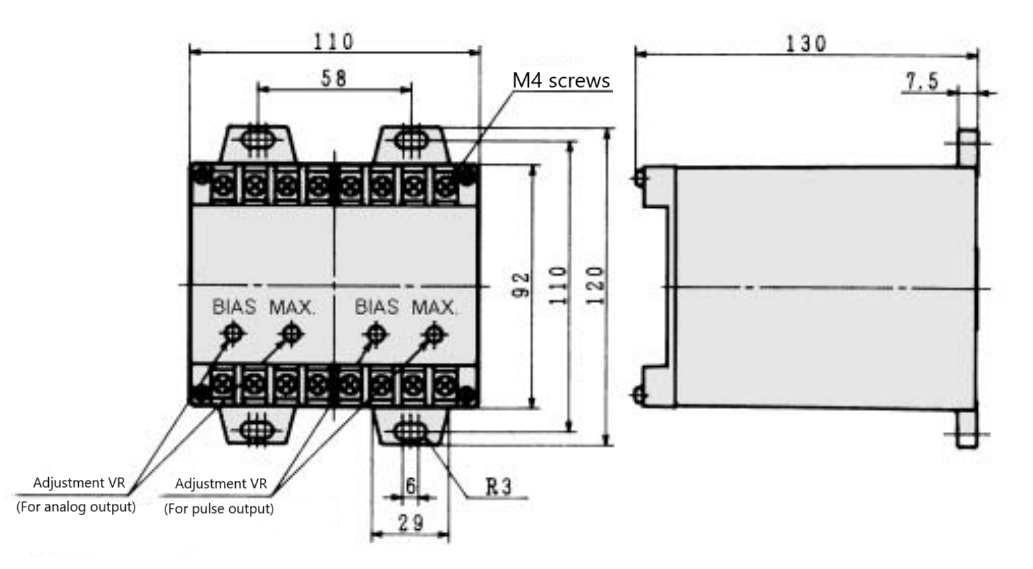

External Dimension
