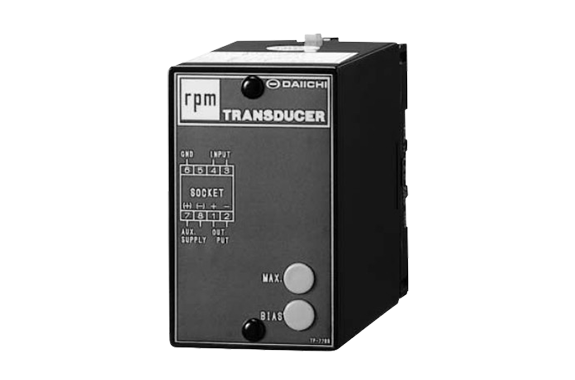

Daiichi Electronics Rotational Speed Transducer GVTP2-H0F5
Manufacturer: Daiichi Electronics Co., Ltd.
Model: GVTP2-H0F5
Features
- Constant voltage and constant current output.
- Complete isolation between input, output, auxiliary power, and ground with a withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
- Impulse withstand voltage: 5 kV, 1.2/50 μs between the electrical circuit and ground, positive and negative polarity, guaranteed for three iterations.
- Equipped with surge protection between output lines (2,000 A, 8/20 μs, positive and negative polarity), allowing direct transmission to remote locations.

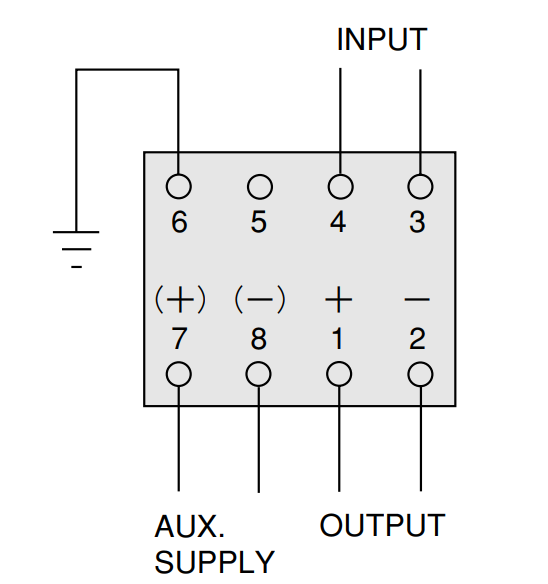

Wiring Diagram
Note: The polarity inside the parentheses applies when using a DC auxiliary power supply.
