Manufacturer: Daiichi Electronics Co., Ltd.

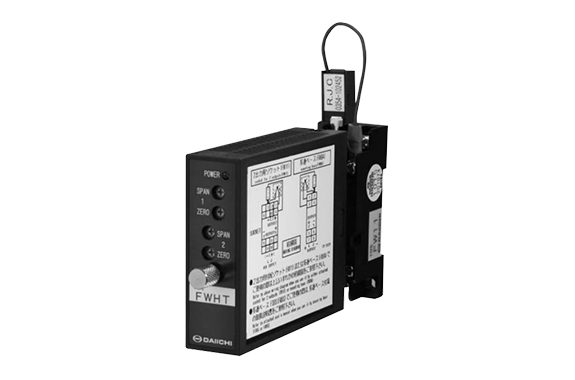

Model: FWHT

Features

• Designed compact with high dielectric strength.
• Dielectric strength between input, output, auxiliary power, and enclosure: AC 2000 V (50/60 Hz) for 1 minute.
• Dielectric strength between output channels: AC 500 V (50/60 Hz) for 1 minute.
• As a constant-voltage/current output type, no adjustment is required when used within the specified load resistance range.
• Power-on status can be confirmed via LED.
• Zero and span adjustments for output 1 and output 2 can be adjusted independently (±2% adjustable).
• Burnout function can be specified as either positive burnout or negative burnout.

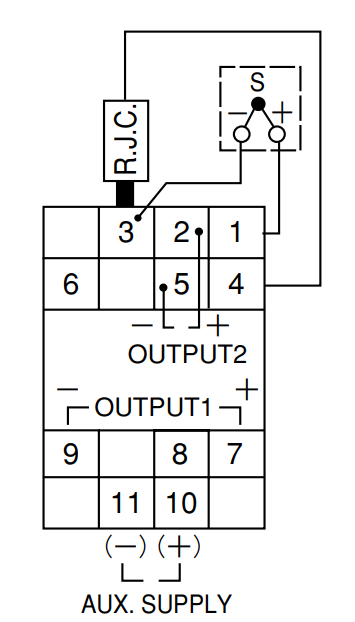

Wiring Diagram
