Daito Communication Apparatus Co.

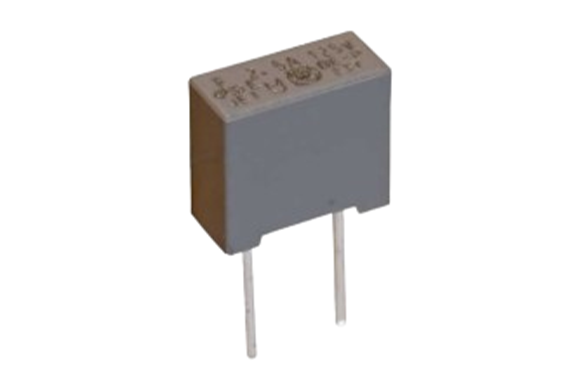

Daito BE-P Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: BE-P Fuse
Features
- This product is compatible with potting boards, making it suitable for use in water-related facilities and outdoor equipment.
- This product is compatible with potting boards and is suitable for use in wet and outdoor facilities.
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| BE-P16 | 1.6 A | AC/DC 125 V 50 A | 89 mΩ | 1.7 A²·s |
| BE-P20 | 2 A | 67 mΩ | 2.8 A²·s | |
| BE-P25 | 2.5 A | 52 mΩ | 6.3 A²·s | |
| BE-P32 | 3.15 A | 41 mΩ | 9 A²·s | |
| BE-P40 | 4 A | 27 mΩ | 16 A²·s | |
| BE-P50 | 5 A | 20 mΩ | 21 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 1 ms of I²t characteristics.
○ With protective coating
| Carrying Capacity | Clearing Time |
|---|---|
| 125% | 200% within 2 minutes 1,000% 1 ms to 10 ms |

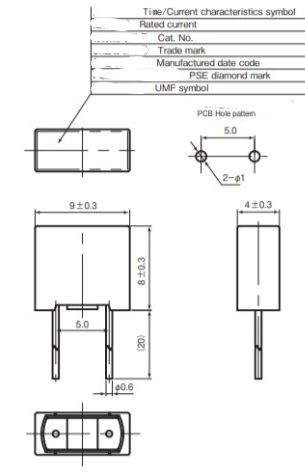

- Dimensions & Weight Size, Net Width
- 9×4×8mm0.4g
- Color
- Gray
- Package
- 2,000 pcs/taping sluice bin
, 2,000pcs/continuous taping
- Range of ambient temperature
- -40°C~105°C
- Storage temperature
- -25°C~40°C (Taping state)
