Daito Communication Apparatus Co.

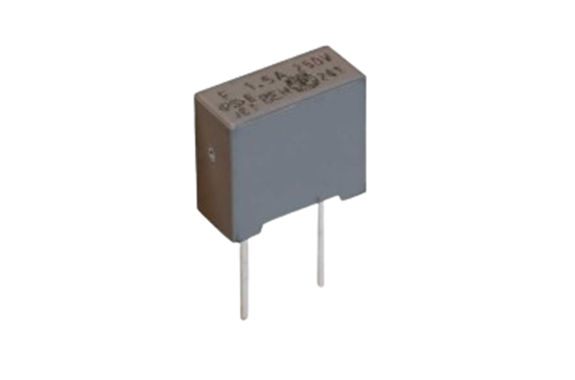

Daito BEH Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: BEH Fuse
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| BEH10 | 1 A | AC 250 V 35 A | 0.11 Ω | 1.3 A²·s |
| BEH13 | 1.25 A | 89 mΩ | 1.7 A²·s | |
| BEH15 | 1.5 A | 75 mΩ | 2.8 A²·s | |
| BEH16 | 1.6 A | 67 mΩ | 2.8 A²·s | |
| BEH20 | 2 A | 52 mΩ | 6.3 A²·s | |
| BEH25 | 2.5 A | 41 mΩ | 9.0 A²·s | |
| BEH32 | 3.15 A | 32 mΩ | 16 A²·s | |
| BEH40 | 4.0 A | AC 250 V 40 A | 24 mΩ | 21 A²·s |
| BEH50 | 5.0 A | AC 250 V 50 A | 19 mΩ | 31 A²·s |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of I²t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 150% | 210% within 30 min 275% 0.01–3 s 400% 0.003–0.3 s 1,000% within 0.02 s |
