Daito Communication Apparatus Co.

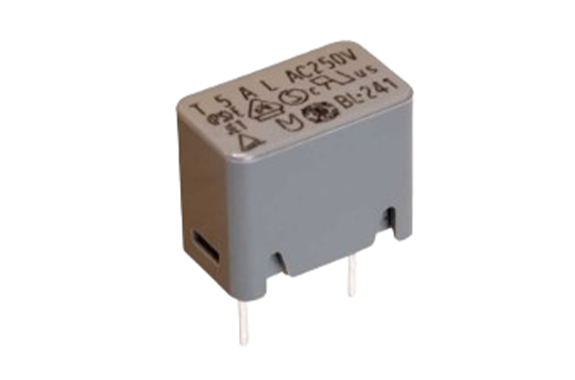

Daito BL Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: BL Fuse
Specifications
| Type | Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | ||||
| Quick-acting Type (F) | BL10 | 1 A | AC 250 V, 100 A DC 63 V, 50 A (UL, TÜV only) | 0.145 Ω | 0.6 A²·s |
| BL13 | 1.25 A | 0.115 Ω | 1 A²·s | ||
| BL16 | 1.6 A | 82 mΩ | 1.9 A²·s | ||
| BL20 | 2 A | 62 mΩ | 3.3 A²·s | ||
| BL25 | 2.5 A | 51 mΩ | 5.3 A²·s | ||
| Time-lag Type (T) | BL32 | 3.15 A | AC 250 V, 100 A DC 63 V, 10 times rated current (UL, TÜV only) | 30 mΩ | 14 A²·s |
| BL40 | 4 A | 25 mΩ | 21 A²·s | ||
| BL50 | 5 A | 18 mΩ | 36 A²·s | ||
| BL63 | 6.3 A | 12 mΩ | 80 A²·s | ||
| BL80 | 8 A | 10 mΩ | 110 A²·s | ||
| BL100 | 10 A | 8 mΩ | 210 A²·s | ||
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of I²t characteristics.
Note: BL80 and BL100 are not certified by TÜV.
| Carrying Capacity | Clearing Time |
|---|---|
| 125% | 200% within 2 minutes 1,000% BL10 to BL25: 1 ms to 10 ms BL32 to BL100: 10 ms to 100 ms |

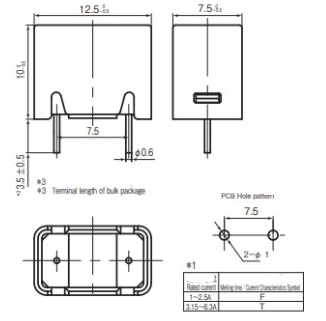

- Dimensions & Weight Size, Net Width
- 12.5×7.5×10mm 1.2g
- Color
- Gray
- Package
- 800 pcs / Taping Tsussula Rack 500pcs / Loose
Boxed 800pcs / Continuous Taping 500pcs / Bulk
- Range of ambient temperature
- -20°C~85°
- Storage temperature
- -25°C~40°C (Taping state)
