Daito Communication Apparatus Co.

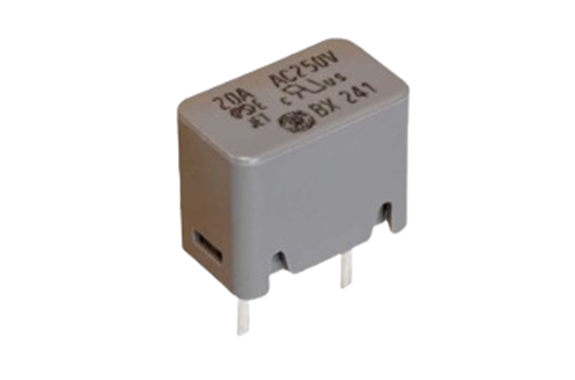

Daito BX Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: BX Fuse
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| BX125 | 12.5 A | AC 250 V 100 ADC 63 V 50 A | 3.4 mΩ | 130 A²·s |
| BX160 | 16 A | 2.4 mΩ | 330 A²·s | |
| BX200 | 20 A | 1.7 mΩ | 430 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 1 ms of I²t characteristics.
Note: This fuse is for AC single-phase use. Do not use it for three-phase circuits.
Note: The safety standards differ when using this fuse with DC ratings; please contact us.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 2 minutes |

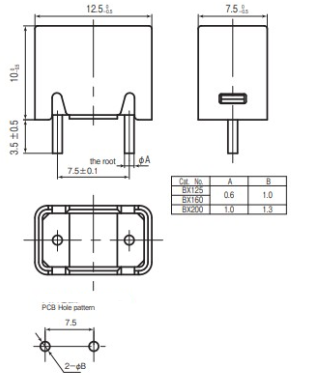

- Dimensions & Weight Size, Net Width
- 12.5×7.5×10mm 1.2g
- Color
- Gray
- Package
- 50 or 500 pieces per loose bag,
50 or 500 pcs per bluk
- Range of ambient temperature
- -20°C~85°
- Storage temperature
- -40℃～85℃
