Daito Communication Apparatus Co.

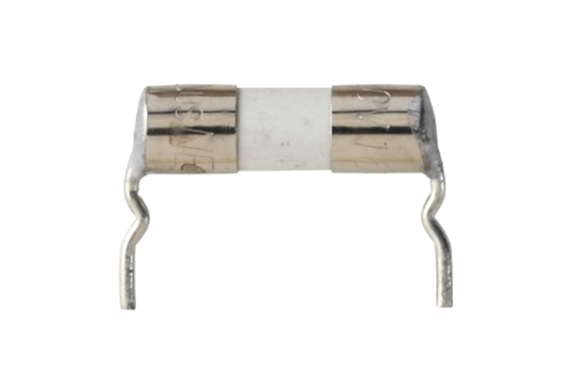

Daito D61/ D62 Fuse DC Fuses For DC Circuit
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: D61/ D62 Fuse
Features
- This product is a fuse for DC circuits.
- This product is a fuse for DC circuits.
- Trade mark: NEW
- Rated current: 10A, 12.5A, 16A, 20A
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | ||
|---|---|---|---|---|---|
| With Lead*3 | Without Lead*4 | Typical Resistance*1 | Joule Integral*2 | ||
| D6110A-「」 | D6210A-「」 | 10 A | DC 450 V 400 A | 8.1 mΩ | 160 A²·s |
| D6112.5A-「」 | D6212.5A-「」 | 12.5 A | 6.0 mΩ | 290 A²·s | |
| D6116A-「」 | D6216A-「」 | 16 A | 4.7 mΩ | 560 A²·s | |
| D6120A-「」 | D6220A-「」 | 20 A | 3.1 mΩ | 1,000 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 1 ms of I²t characteristics.
*3: Item numbers 10–20 A indicate F4.7LM.
*4: Item numbers 10–20 A indicate LM.
Note: F4.7 indicates the terminal shape, and LM indicates laser marking.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 2 minutes |

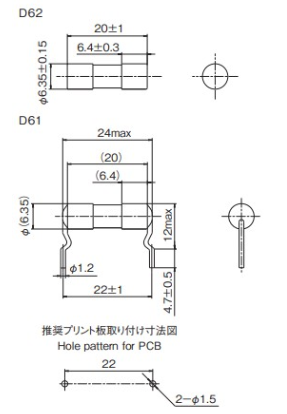

- Dimensions & Weight Size, Net Width
- Φ6.35×20mm 2g
- Package
- Minimum 100 units,
bulk packageminimum 100 units
- Range of ambient temperature
- -40°C~80°C
- Storage temperature
- -40℃～80℃
