Daito GAC1 25A-40A Tubular Fuse
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: GAC1 25A-40A
Features
- External dimensions and weight
- Φ10.5×39mm 11g
- Packaging
- Sold in units of
100 / box
- Operating temperature range
- -40℃ to 80℃
*If you are considering using it outside this range, please feel free to contact us .
- Storage temperature
- -40℃ to 80℃
- Compatible fuse/holder
Product Description
Manufacturer’s Trademark: NEW
Rated current: 25A, 31.5A, 40ASpecifications Table 1
Nominal Value Cat. No. Rated Current Breaking Capacity Typ. Resistance*1 Joule Integral*2 GAC1 0.8A : □ 0.8A AC 600V, 10,000A / DC 125V, 1,000A 1.03Ω 0.31A²·s GAC1 1A : □ 1A 0.73Ω 0.67A²·s GAC1 1.25A : □ 1.25A 0.55Ω 1.2A²·s GAC1 1.6A : □ 1.6A 0.41Ω 2.2A²·s GAC1 2A : □ 2A 0.30Ω 2.2A²·s GAC1 2.5A : □ 2.5A 0.22Ω 7.1A²·s GAC1 3.15A : □ 3.15A 0.16Ω 13A²·s GAC1 4A : □ 4A 0.11Ω 22A²·s GAC1 5A : □ 5A 0.84Ω 36A²·s GAC1 6.3A : □ 6.3A 0.37Ω 40A²·s GAC1 8A : □ 8A 0.27Ω 68A²·s GAC1 10A : □ 10A 0.20Ω 110A²·s GAC1 12.5A : □ 12.5A 7.8mΩ 130A²·s GAC1 16A : □ 16A 5.7mΩ 260A²·s GAC1 20A : □ 20A 3.3mΩ 520A²·s GAC1 25A : □ 25A AC 500V, 1,500A / DC 125V, 1,000A 2.8mΩ 660A²·s GAC1 31.5A : □ 31.5A 1.8mΩ 1,400A²·s GAC1 40A : □ 40A 1.5mΩ 2,600A²·s GAC1 50A : PLM 50A AC 250V, 1,500A / DC 125V, 1,000A 1.4mΩ 3,500A²·s GAC1 63A : PLM 63A 1.3mΩ 8,000A²·s GAC1 70A : PLM 70A 1.1mΩ 10,000A²·s GAC1 80A : PLM 80A AC 250V, 2,500A / DC 125V, 1,000A 1.0mΩ 6,300A²·s *1: Measured in the cold state at 10% or less of the rated current.
*2: Joule Integral is the value at 1 ms of the I²t-t characteristics.
Carrying Capacity Clearing Time 100% 200% within 2 minutes □ indicates PLM or SLM.

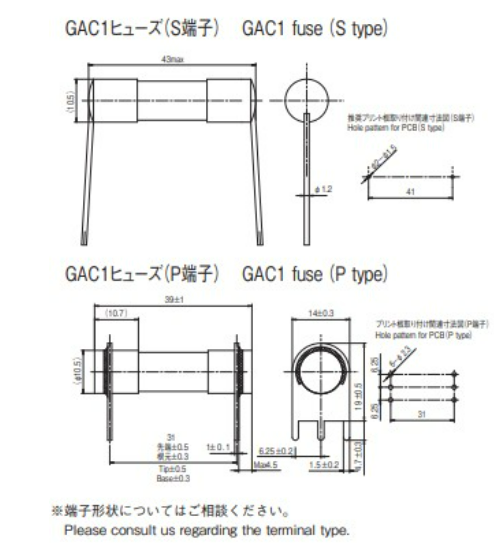

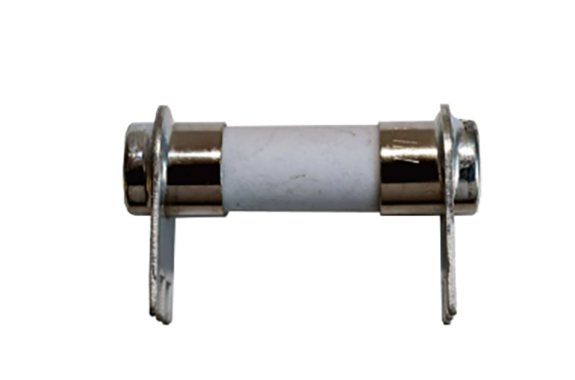

P: Printed circuit board mounting terminal (plate type)
S: Printed circuit board mounting terminal (straight type)
LM: Indicates laser marking.
