Daito Communication Apparatus Co.

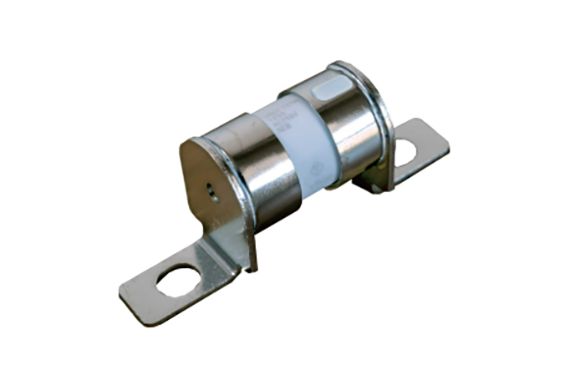

Daito UAE Fuse
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: UAE
Features

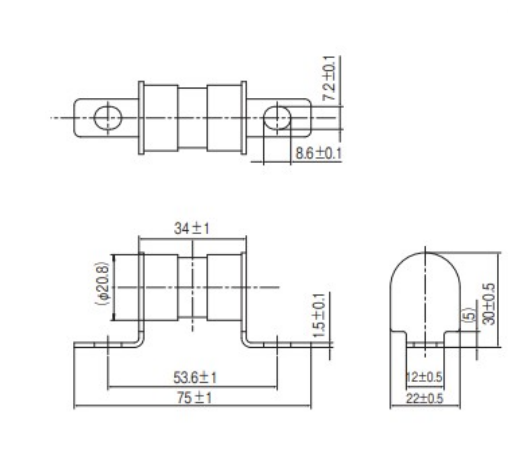

- External dimensions and weight
- Φ20.8×34mm 60g
- Packaging
- Minimum order quantity: 100 units, bulk packagin
- Operating temperature range
- -40℃ to 80℃
*If you are considering using it outside this range, please feel free to contact us .
- Storage temperature
- -40℃ to 80℃
Product Description
Manufacturer trade mark: NEW
Rated current: 125A, 150A
Rated current: 125A, 150A
Specifications Table 1
| Nominal Value | ||||
|---|---|---|---|---|
| Cat. No. | Rated Current | Breaking Capacity | Typ. Resistance*1 | Joule Integral*2 |
| UAE1 125A : L | 125A | AC 250V 10,000A | 0.51mΩ | 4,100A²·s |
| UAE1 150A : L | 150A | 0.4mΩ | 8,500A²·s | |
- *1: Measured in the cold state at 10% or less of the rated current.
- *2: The Joule Integral (I²t) value is the value at 10 ms on the I²t-t characteristic.
* Please consult us regarding the terminal type.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 400% within 2 minutes |
