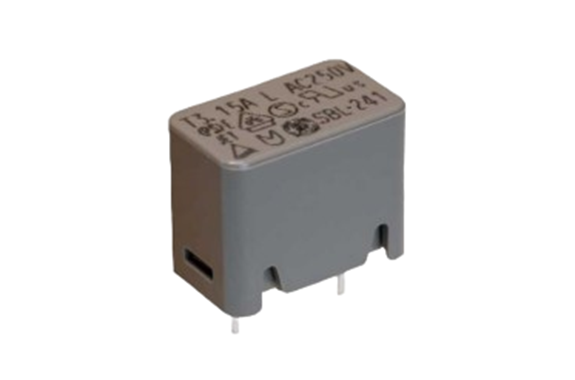

Daito SBL Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: SBL Fuse
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| SBL10 | 1 A | AC 250 V 100 ADC 63 V 50 A (UL, TÜV only) | 0.161 Ω | 4 A²·s |
| SBL13 | 1.25 A | 0.11 Ω | 7 A²·s | |
| SBL16 | 1.6 A | 85 mΩ | 11 A²·s | |
| SBL20 | 2 A | 62 mΩ | 18 A²·s | |
| SBL25 | 2.5 A | 45 mΩ | 32 A²·s | |
| SBL32 | 3.15 A | 36 mΩ | 58 A²·s | |
| SBL40 | 4 A | 26 mΩ | 94 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of I²t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 125% | 200% within 2 minutes 1,000% 10 ms to 100 ms |

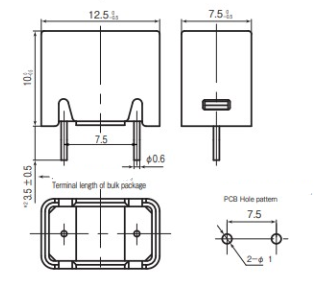

- Dimensions & Weight Size, Net Width
- 12.5×7.5×10mm 1.2g
- Color
- Gray
- Package
- 800 pcs / Taping Tsussula Rack 500pcs / Loose
Boxed 800pcs / Continuous Taping 500pcs / Bulk
- Range of ambient temperature
- -20°C~85°
- Storage temperature
- -25°C~40°C (Taping state)
