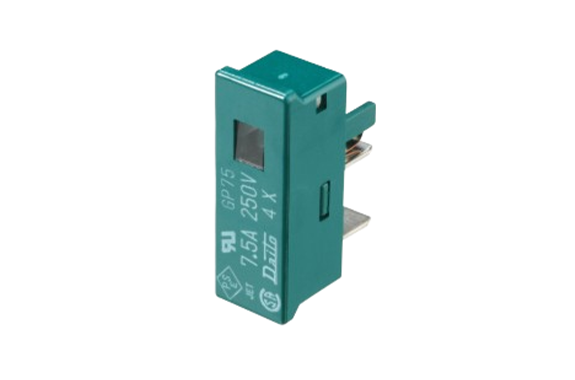

Daito GP032～GP50 Alarm Indicating Fuses & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: GP032～GP50
Features
- This product is a replaceable fuse with an interruption (alarm) function.
- By using a GP fuse holder together, contact output during cutting is also possible.
- This fuse has a blown indication function.
- By using a GP fuse holder, contact output is also possible when the fuse blows.
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| GP032*3 | 0.32 A | AC/DC 250 V 1,500 AAC 125 V 10,000 A | 2.95 Ω | 0.044 A²·s |
| GP05*3 | 0.5 A | 1.74 Ω | 0.16 A²·s | |
| GP10 | 1 A | 0.70 Ω | 0.9 A²·s | |
| GP16 | 1.6 A | 0.41 Ω | 2.6 A²·s | |
| GP20 | 2 A | 97 mΩ | 3.3 A²·s | |
| GP25 | 2.5 A | 71 mΩ | 6.3 A²·s | |
| GP32 | 3.2 A | 53 mΩ | 12 A²·s | |
| GP40 | 4 A | 42 mΩ | 19 A²·s | |
| GP50 | 5 A | AC/DC 250 V 1,500 AAC 125 V 10,000 A | 32 mΩ | 35 A²·s |
| GP75 | 7.5 A | AC/DC 250 V 750 AAC 125 V 10,000 A | 20 mΩ | 100 A²·s |
| GP100 | 10 A | 9 mΩ | 100 A²·s | |
| GP150 | 15 A | 5 mΩ | 260 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of the I²t characteristics.
*3: GP032 and GP05 are not subject to the PSE Law.
| Carrying Capacity | Clearing Time |
|---|---|
| 110% | 135% within 1 hour 200% within 2 minutes |

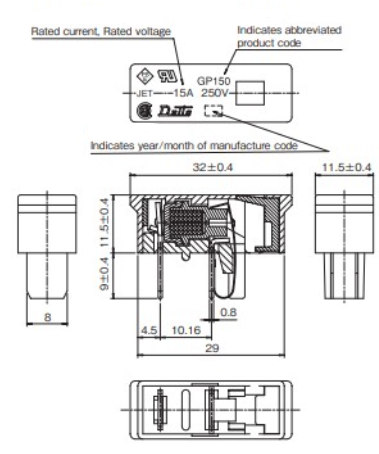

- Dimensions & Weight Size, Net Width
- 32×11.5×20.5mm 6g
- Color
- Dark Green
- Package
- 50 pieces/box
50pcs/box
- Range of ambient temperature
- -20°C~70°C
- Storage temperature
- -40℃～85℃
