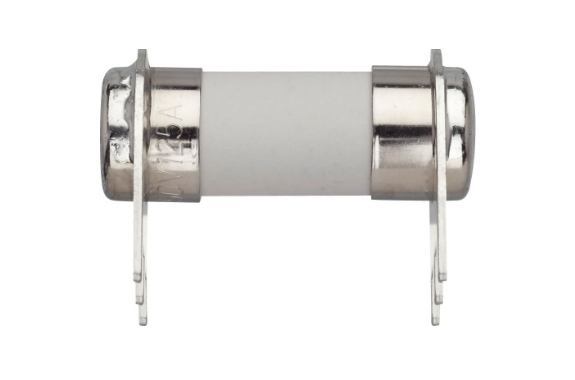

Daito LAC1 100A-125A Tubular Fuse
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: LAC1 100A-125A
Features

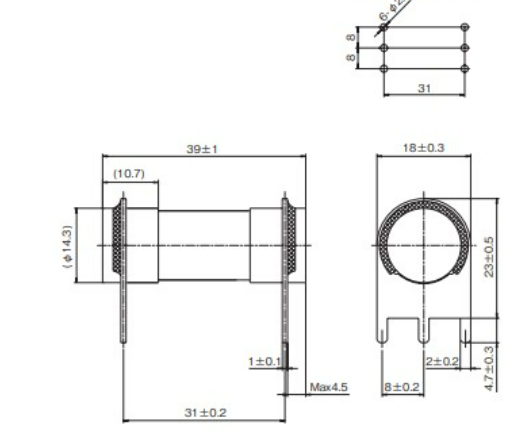

- External dimensions and weight
- Φ14.3×39mm 20g
- Packaging
- Minimum order quantity : 40 units,
packaged in bulk.
- Operating temperature range
- -40℃ to 80℃
*If you are considering using it outside this range, please feel free to contact us .
- Storage temperature
- -40℃ to 80℃
- Compatible fuse/holder
Product Description
Manufacturer’s trade mark: NEW
Rated current: 100A, 125A
Standard for Safety: cULus, PSESpecifications Table 1
Nominal Value Cat. No. Rated Current Breaking Capacity Typ. Resistance*1 Joule Integral*2 LAC1 40A:PLM 40A AC 600V, 1,500A 1.54mΩ 2,900A²·s LAC1 63A:PLM 63A DC 125V, 1,000A 1.28mΩ 8,700A²·s LAC1 100A:PLM 100A AC 250V, 2,500A 0.7mΩ 18,500A²·s LAC1 125A:PLM 125A DC 125V, 1,000A 0.57mΩ 27,000A²·s *1: Measured in the cold state at 10% or less of the rated current.
*2: Joule Integral is the value at 10 ms of the I²t-t characteristics.
* Please consult us regarding the terminal type.
Carrying Capacity Clearing Time 100% 200% within 2 minutes
