Daito Communication Apparatus Co.

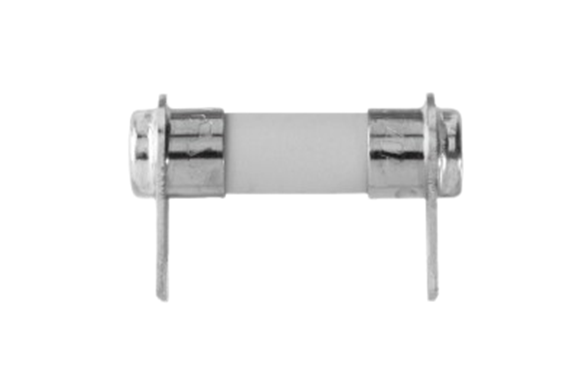

Daito SGAC1 / SGAC2 Fuse Tubular Fuses
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: SGAC1 / SGAC2 Fuse
Features
- Trade Mark: NEW
- Rated current: 1.25A, 1.6A, 3.15A
Specifications
SGAC1 Fuse Specifications
| Cat. No. With Lead | Cat. No. Without Lead | Rated Current (A) | Breaking Capacity | Typ. Resistance (Ω) | Joule Integral (A²·s) |
|---|---|---|---|---|---|
| SGAC1 1.25A | SGAC2 1.25A | 1.25 | AC 600V 10,000A | 1.2 | 7.4 |
| SGAC1 1.6A | SGAC2 1.6A | 1.6 | AC 600V 10,000A | 0.92 | 12 |
| SGAC1 3.15A | SGAC2 3.15A | 3.15 | AC 600V 10,000A | 0.37 | 65 |
Notes on Terminals
- Values measured at ≤10% of rated current.
- Joule Integral is the value of 1ms of I²t characteristics.
- □ is letter P or S.
- P: Printed circuit board mounting terminal (plate type).
- S: Printed circuit board mounting terminal (straight type).
Carrying Capacity & Clearing Time (SGAC1 Fuse)
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 2 minutes |

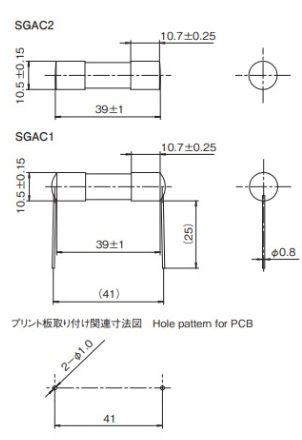

- Dimensions & Weight Size, Net Width
- Φ10.5×39mm 8.1g
- Package
- Minimum 100 units,
bulk packageminimum 100 units
- Range of ambient temperature
- -40°C~80°C
- Storage temperature
- -40℃～80℃
