Datalink Corporation

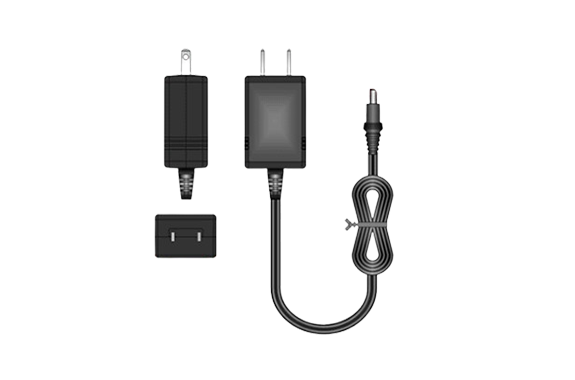

Datalink ATS012S-W050U Series AC Adapter

Manufacturer: DataLink
Model: ATS012S-W050U
Features
- ATS012S-W050U is a standard AC adapter model.
- The AC adapters, whether sold separately or included, may be replaced with equivalent products.
- This adapter is used as a standard accessory for products such as RSCV-RJ, CD485-FA, DL-U422RJ/S, and DL-U422RJ/P.
- It is also compatible with the separately sold product FA-HID/PS2.
- When ordering a separately sold AC adapter, please specify it as “AC adapter for \[product name]” without mentioning the model number.
Example: “AC adapter for FA-HID/PS2.”
Specifications
| Item | Details |
|---|---|
| Operating Conditions | Temperature: -20°C to +40°C Humidity: 20% to 80% RH (non-condensing) |
| Storage Conditions | Temperature: -20°C to +80°C Humidity: 10% to 90% RH (non-condensing) |
| Dimensions | Width: 33.8 mm Height: 25.4 mm Depth: 48.9 mm (excluding AC socket and cord) Cord Length: 1500 mm (excluding DC plug) |
| Weight | Approx. 73g ±10g |
| Rating | Input: Universal AC100V to 240V, 50/60Hz Output: DC4.7V to 5.3V, 2.0A max |
| Output Plug | EIAJ Type2 Center Positive |
| Certifications | UL, cUL, BSMI, FCC, PSE, RoHS |
