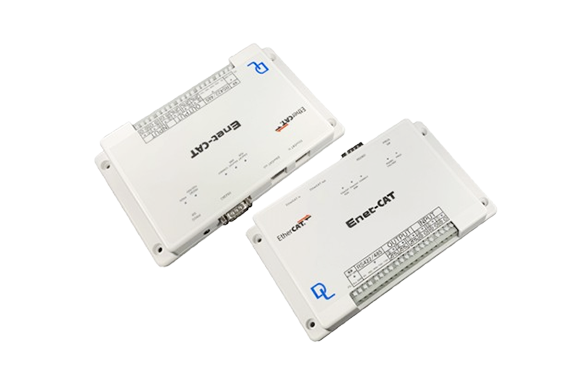

DataLink Enet-CAT Series Terminal with Non-Protocol Serial Communication/I/O Port
Manufacturer: DataLink
Model: Enet-CAT
Features
- Enet-CAT is an EtherCAT terminal with a non-protocol serial communication port and input/output ports.
- Certified by passing the CTT protocol test.
- Equipped with the following interfaces:
–1 RS232C channel
–1 RS422/485 channel
–3 input ports
–3 output ports
Specifications
◆Operating environment, power supply, and dimensions
| Operating conditions | Temperature: 0 to 50°C Humidity: No condensation |
| Storage conditions | Temperature: -30°C ~ +80°C |
| Power supply used | Supply voltage: DC6V to 24V Current consumption: 0.3A |
| Size | Width: 200mm Length: 130mm Height: 25mm |
| Weight | Approximately 300g |
| IO Connector | ML-1400-S1-4P (SATO PARTS) |
◆Ether Channel
| Communication method | IEEE 802.3 (100Base TX) |
| Protocol | EtherCAT PDO.SDO |
| Communication speed | 100MBps |
| Connector | RJ45 |
◆RS232C channel
| Communication speed | 600 to 230.4 Kbps |
| Control Signals | RTS/CTS, DTR/DSR |
| Connector | Dsub9 male DTE arrangement |
◆RS422 Channel
| Communication speed | 600 to 230.4Kbps Connect to DTE devices such as PCs with a cross cable |
| Control Signals | none |
| Connector | Insertion Type Connector |
