Manufacturer: DataLink

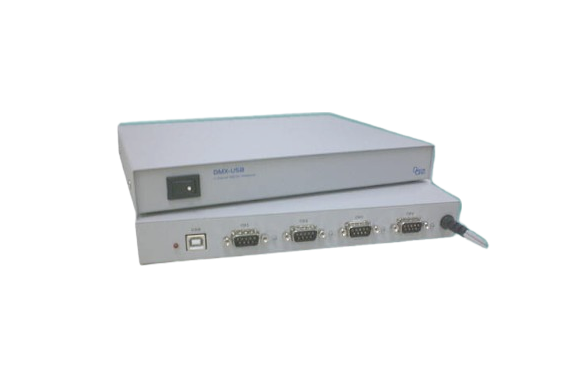

Model: DMX-USB

Features

• One USB controller can control up to four RS232C terminal devices.
• Equipped with serial channel photo-isolation and a universal AC240V power supply to support automation and labor-saving in offices and factories.
• Data communication occurs between the USB master and RS232C slaves (COM1–4).
• Uses FTDI FT4232H USB driver software, compatible with USB1.0 full speed (12 Mbps) and USB2.0 high speed (480 Mbps).
• Communication settings (data length, stop bit, parity, etc.) can be configured individually for each RS232C channel.
• Flow control options include XON/XOFF and hardware control.
• All four RS232C channels support VCP (Virtual COM Port) and are individually assigned to PC COM ports.
• No channel switching commands are required, unlike traditional multiplexers.
• Each RS232C channel is photocoupler-isolated to reduce noise interference.
• Specifications differ from conventional DMX series multiplexers (DMX200, DMX400, DMX900).
• Demo units are available—please contact us for details.
