Manufacturer: DataLink

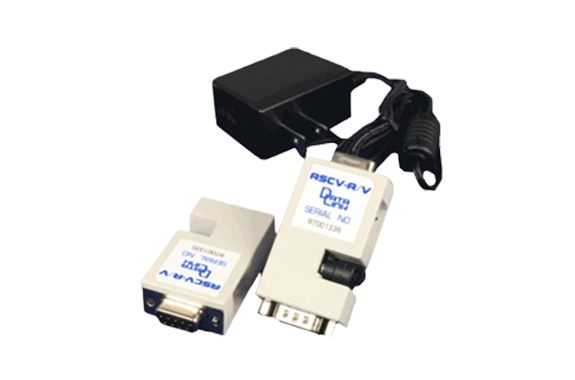

Model: RSCV-R/V-RoHS Series

Features

• Enables RS232C to RS422 conversion with the RSCV-R/V model, compliant with RoHS standards
• Operates using an external power supply and comes with a standard AC adapter
• Equipped with a Dsub9 female RS232C connector featuring a #4-40 UNC inch mounting screw
• Includes a Dsub9 male RS422 connector with a #4-40 UNC inch mounting screw

Specifications

◆RS232C ⇋ RS422 converter

• The RSCV series is a compact and lightweight RS232C to RS422 converter designed in a connector-sized format
• It converts RS232C signal levels to RS422 signal levels, enabling seamless connection between RS232C and RS422 devices
• Supports communication distances of up to 1200 meters between RS232C and RS422 devices
• Available in models with or without power supply requirements and with optional isolation functions
• Complies with the RoHS directive for environmentally conscious design

◆External Dimensions
