Manufacturer: DEICY Co., Ltd.
Model: MHR5200 Series

Features

• Angle range: 20° to 360°, every 1°
• 3 types of stainless steel shafts
• Low-friction ball race bearings
• 5 VDC or 8 to 30 VDC powered
• Protection class IP68/IP69K

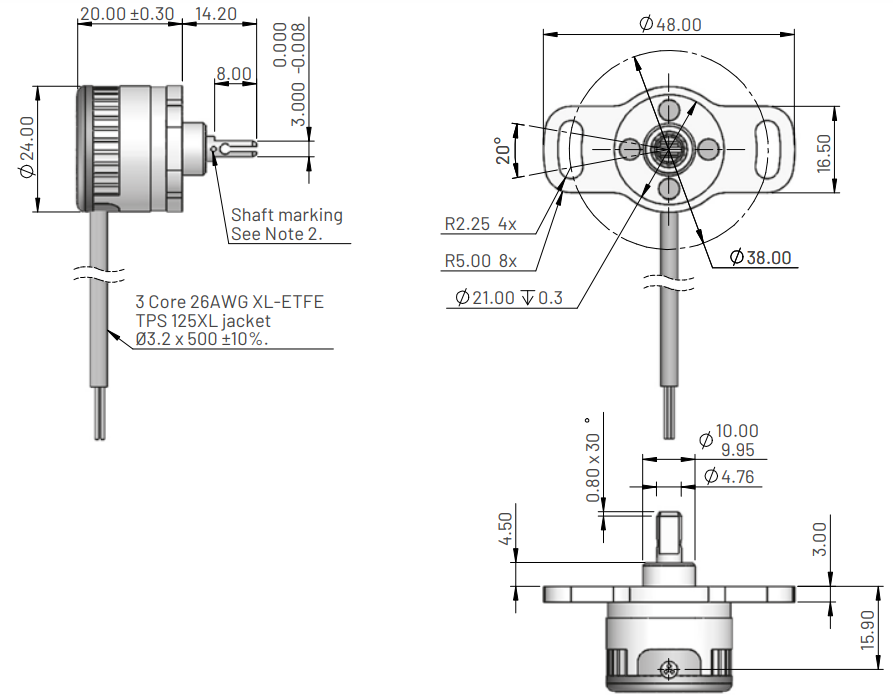

■ Dimensions for MHR5210 – Flange mounting with a sprung shaft

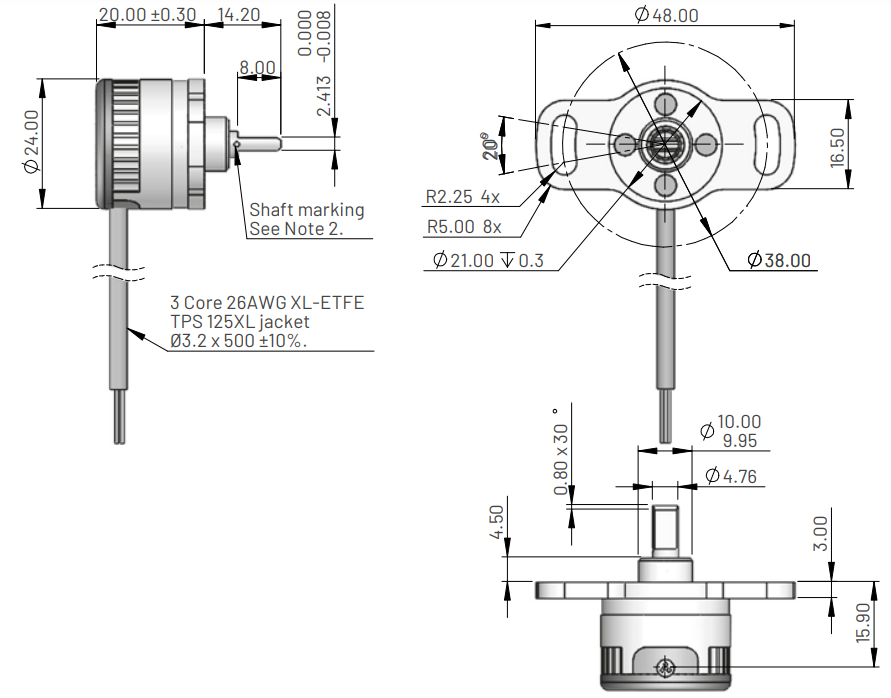

■ Dimensions for MHR5220 – Flange mounting with a round shaft

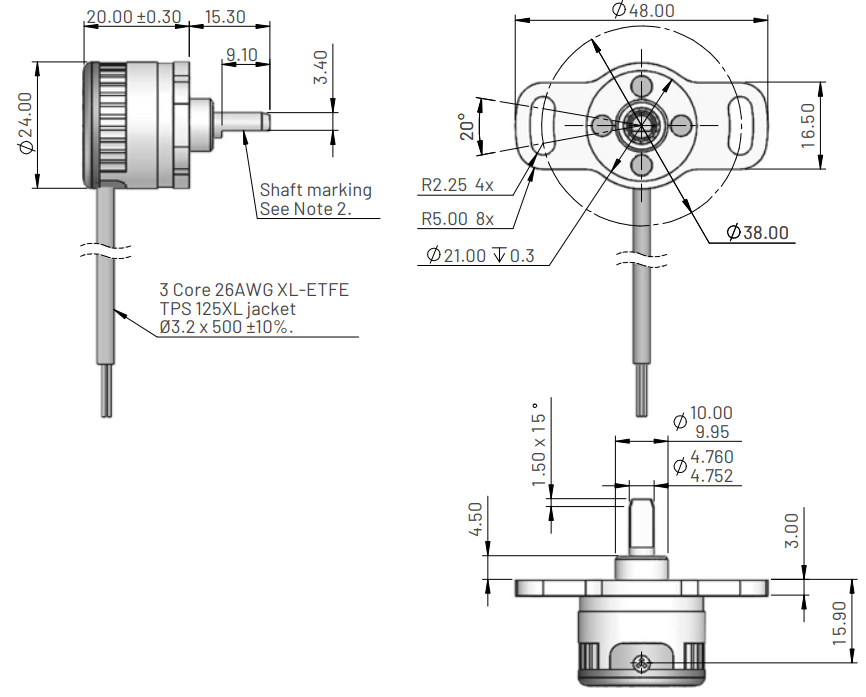

■ Dimensions for MHR5230 – Flange mounting with a blade shaft
