DEICY

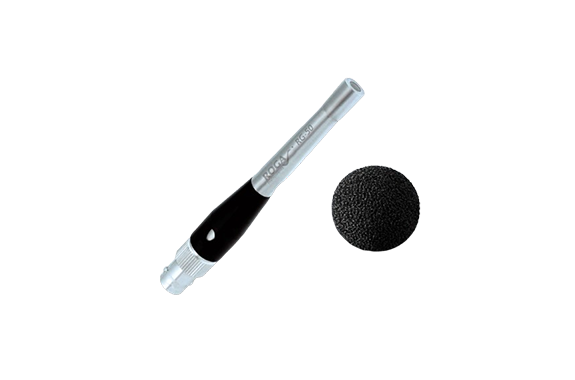

Deicy MI-17 1/4 Inch Type Microphone
Manufacturer: DEICY Co., Ltd.
Model: MI-17
Features
- This is a 1/4-inch microphone with a BNC connector. It is a low-cost microphone that can be used with built-in piezoelectric sensor amplifiers and recording devices.
- Sensitivity is 50mV/Pa
- Length 93mm,
Tube diameter 8mm,
Weight approximately 23g
Specifications
| Item | Specification |
|---|---|
| Frequency Response (Typical) | 30Hz ~ 4kHz (± 0.5dB) 4kHz ~ 20kHz (± 1.5dB) |
| Sensitivity | 50mV/Pa |
| Noise | Lin: 20Hz ~ 20kHz 35dB(SPL) A-weighted: 26dB(SPL) |
| Max Peak SPL | 130dB (ref. 20 µPa) |
| Drive Current | 2 ~ 6mA |
| Output Impedance | 50 Ω |
| Connector | BNC (Male) |
| External Dimensions / Weight | Length: 93mm, Tube Diameter: 8mm, Approx. 23g |
| Operating Temperature Range | -10°C ~ +50°C |
| Included Accessories | Windshield |
