Manufacturer: DEICY Co., Ltd.

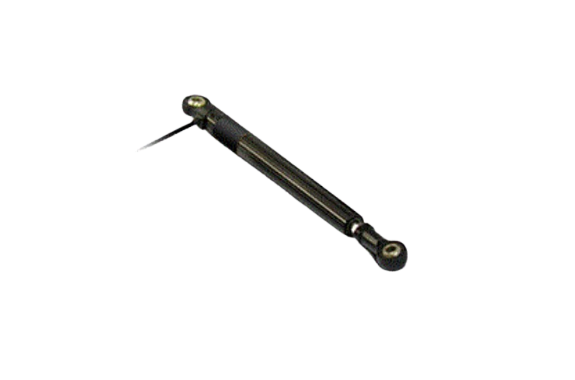

Model: MLS1300 Series

Features

• Unique twin-element sliding track for low noise
• Single-element sliding track
• Measurement length 25mm to 350mm
• Nonlinearity < ±0.15 %FS
• 13mm diameter slim aluminum case
• 4mm diameter stainless steel shaft
• Protection class IP66

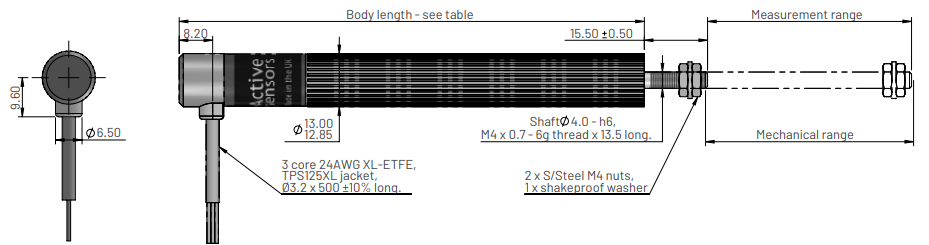

■ Dimensions for MLS1321 body clamp mounting

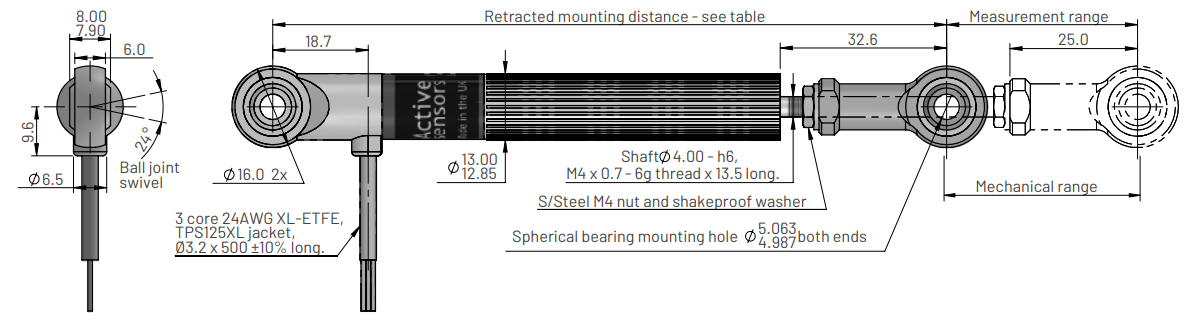

■ Dimensions for MLS1322 5mm rod-end mounting

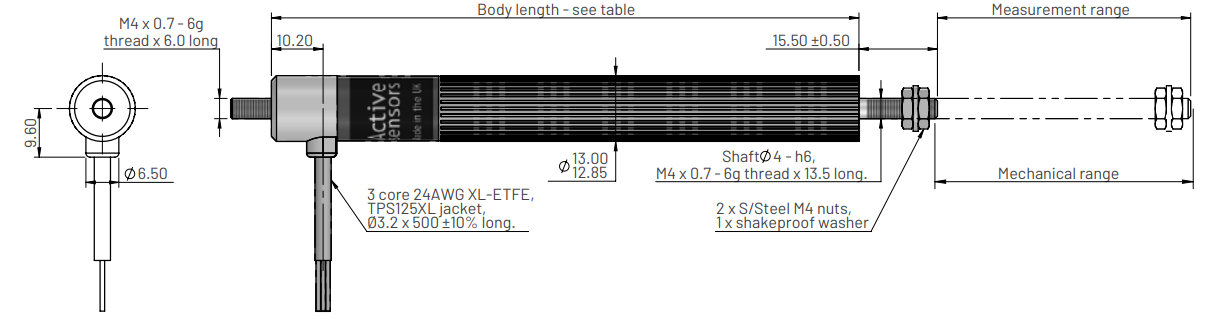

■ Dimensions for MLS1326 threaded mounting
