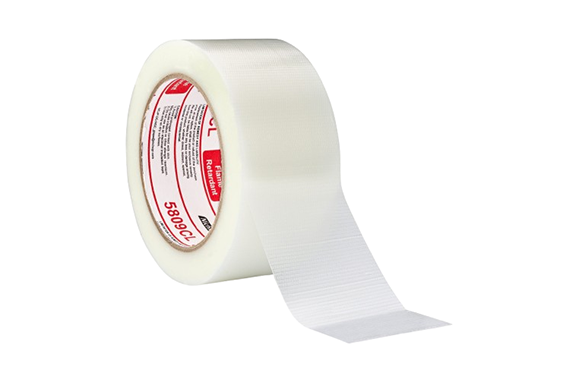

Diatex 5809CL Multi-Purpose Flame Retardant Tape
Manufacturer: Diatex Co., Ltd.
Model: 5809CL
Features
- Easy to tear by hands straight: No cutting tool is required
- Invisibility: Can be used in cabin
- High initial tackiness and Clean removable: Easy handling
- Flame retardancy: Passed FAR25.853(a) vertical burning test
Specifications
| Content | Unit | Value | Test method |
|---|---|---|---|
| Thickness | mil (mm) | 8.3 (0.21) | PSTC 133 |
| Peel adhesion | oz/in (N/cm) | 36.5 (4) | PSTC 101 |
| Shear adhesion | mil (mm) | 20 (0.5) | PSTC 107 |
| Breaking strength | lbf/in | 26 (46) | PSTC 131 |
| Elongation | % | 15 | PSTC 131 |
| Temperature use range | °F | -40 to 200 | MCC method |
Dimensions (mm)
