Electronic Magnetic Industry Co.

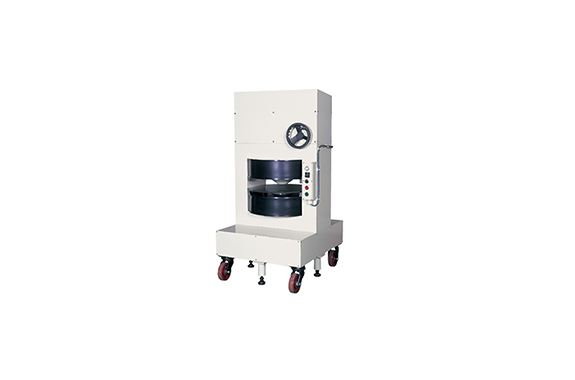

EMIC EMD-80M25M for room temperature BH Analyzer Electromagnet 2.5T
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: EMD-80M25M
Specifications
| Pole diameter | φ80㎜ |
| Magnetic pole GAP | 0～70㎜ |
| GAP variable | Electric (handwheel type by switching) |
| Coil Resistance | 1.6Ω |
| Rated current | 30A |
| Generated magnetic field (at 30A): 10mmGAP 20mmGAP 30mmGAP 40mmGAP | 2.5T 2.0T 1.5T 1.1T |
| External dimensions (mm) and mass | Approx. 765W×1600H×900D Approx. 1,500kg |
