Electronic Magnetic Industry Co.

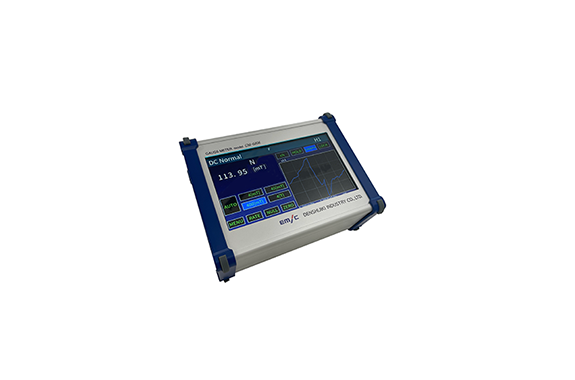

EMIC GM-6006 (3-axis), GM-6001 (1-axis) New Gauss Meter
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: GM-6006 (3-axis), GM-6001 (1-axis)
Features
- Equipped with waveform display function
- Temperature compensation, touch panel, full remote support
- Equipped with auto-calibration function
Specifications
| Measuring range | Standard: 4mT, 40mT, 400mT, 4T (4 ranges) |
| Measurement accuracy | DC: ±0.5% + 0.1% F.S in each range ± Probe Accuracy AC: ±0.5% + 0.1% F.S in each range ± + Probe Accuracy |
| Number of digits displayed | Up to 5 digits |
| Measurement frequency | DC: DC only AC: 20Hz~20kHz/-3dB |
| function | DC measurement (moving average user optional), AC measurement (true RMS conversion), temperature compensation (ON/OFF), waveform display (ON/OFF) |
| power | AC adapter (12V/2A)) |
| I/o | USB2.0, Ethernet/LAN *Ethernet/LAN: IEEE802.3u, IEEE802.3 compliant OUTPUT(BNC) ±4V F.S |
| Dimensions and mass | 197(W)×151(D)×81(H)mm Approx.1.5Kg *Only the main unit |
