FUJI DIE
Fuji Die D/D-B Type Electroplated Grinding Tool
Manufacturer: Fuji Die Co., Ltd.
Model: D/D-B Type

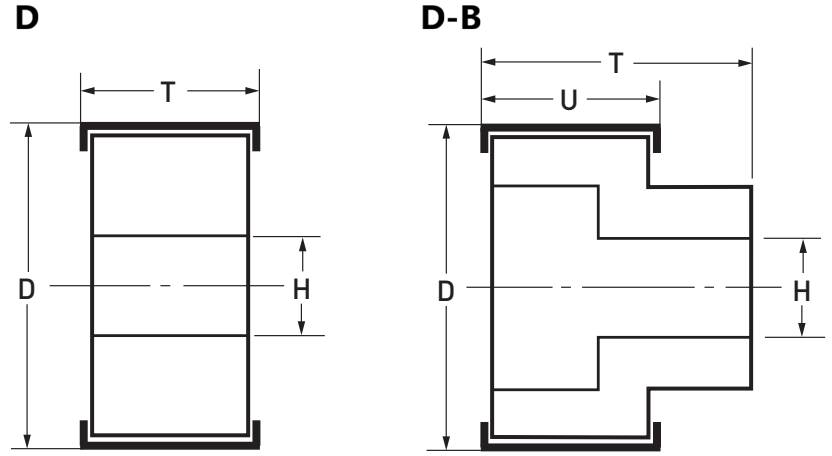

Specifications And Dimensions (Unit: mm)
| Model No. | D | H | U | T |
|---|---|---|---|---|
| D11-6 | 11 | 6 | — | 13 |
| D12-6 | 12 | 6 | — | 13 |
| D14-6 | 14 | 6 | — | 13 |
| D16-6 | 16 | 6 | — | 13 |
| D16-8 | 16 | 8 | — | 13 |
| D20-8 | 20 | 8 | — | 10 |
| D25-8 | 25 | 8 | — | 10 |
| D30-10 | 30 | 10.5 | — | 13 |
| D30-10B | 30 | 10.5 | 15 | 25 |
| D40-10 | 40 | 10.5 | — | 13 |
| D40-10B | 40 | 10.5 | 12 | 20 |
