FUJI DIE
Fuji Die Tube Pipe Drawing Die And Plug MB Type For Soft Pipes
Manufacturer: Fuji Die Co., Ltd.
Model: MB Type

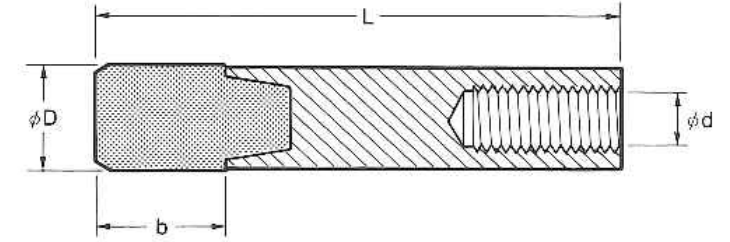

Specifications and Dimensions
| Model No. | D | L | b | d (inch) |
|---|---|---|---|---|
| MB 9 | 7~9 | 62 | 12 | 1/4 |
| MB 11 | 9~11 | 63 | 13 | 5/16 |
| MB 13 | 11~13 | 70 | 13 | 3/8 |
| MB 15 | 13~15 | 71 | 15 | 3/8 |
| MB 17 | 15~17 | 73 | 17 | 3/8 |
| MB 19 | 17~19 | 85 | 20 | 1/2 |
| MB 22 | 19~22 | 86 | 21 | 1/2 |
| MB 25 | 22~25 | 88 | 23 | 5/8 |
| MB 28 | 25~28 | 90 | 23 | 3/4 |
| MB 31 | 28~31 | 90 | 23 | 3/4 |
