Fuji Die Flat Die FH Type
Manufacturer: Fuji Die Co., Ltd.
Model: FH Type

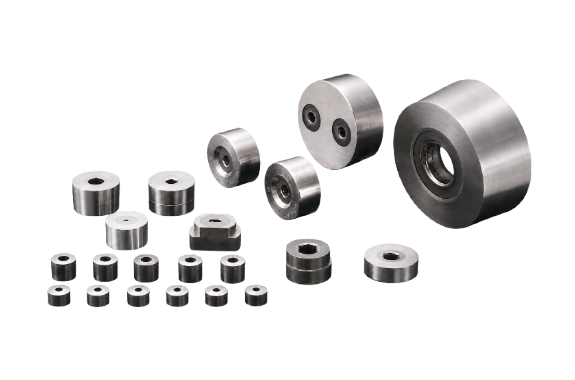

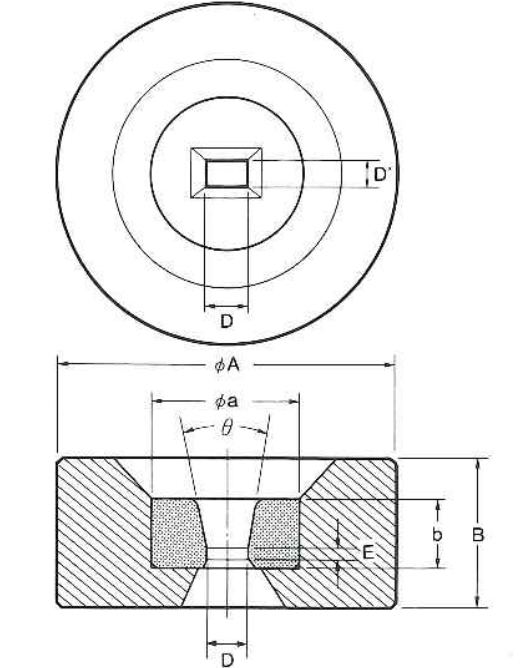

Specifications and Dimensions
| Model No. | D (D:D’ ≤2) | D (D:D’ ≥2) | a | b | E | A | B |
|---|---|---|---|---|---|---|---|
| FH 15 | ≤3 | 3~4 | 15 | 10 | — | 42 | 20 |
| FH 20 | 3~5 | 4~6 | 20 | 14 | — | 55 | 24 |
| FH 25 | 5~7 | 6~8 | 25 | 18 | — | 60 | 28 |
| FH 30 | 7~8 | 8~9 | 30 | 18 | — | 70 | 35 |
| FH 35 | 8~11 | 9~13 | 35 | 20 | — | 85 | 40 |
| FH 40 | 11~13 | 13~15 | 40 | 20 | — | 100 | 45 |
| FH 50 | 13~17 | 15~19 | 50 | 25 | — | 125 | 50 |
| FH 60 | 17~22 | 19~25 | 60 | 25 | — | 145 | 60 |
| FH 70 | 22~27 | 25~31 | 70 | 30 | — | 175 | 60 |
| FH 80 | 27~32 | 31~37 | 80 | 35 | — | 195 | 70 |
| FH 90 | 32~38 | 37~45 | 90 | 40 | — | 215 | 70 |
| FH 100 | 38~45 | 45~52 | 100 | 40 | — | 230 | 75 |
| FH 110 | 45~52 | 52~60 | 110 | 45 | — | 230 | 80 |
| FH 120 | 52~58 | 60~68 | 120 | 45 | — | 245 | 80 |
| FH 130 | 58~65 | 68~75 | 130 | 50 | — | 245 | 85 |
