FUJI DIE

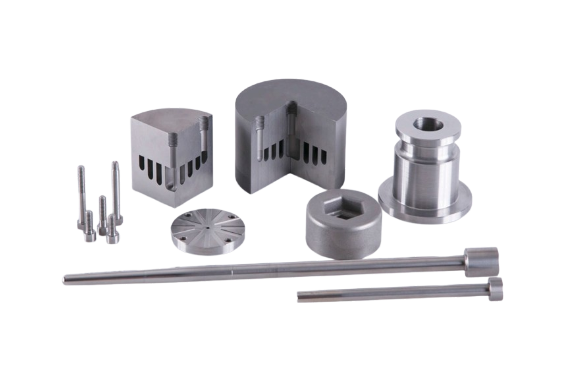

Fuji Die FHR Fujilloy Heat Resistance Alloy
Manufacturer: Fuji Die Co., Ltd.
Model: FHR Alloy
Feature
- A W-based alloy is a sintered alloy with W as the main component and containing a small amount of Ni and other elements.
- Typically, the W content in the alloy is 90 wt% or more, and the alloy density is approximately 17.0–18.5.
- This material is particularly excellent in mechanical properties at high temperatures.
- Fujiroy FHR is manufactured using powder metallurgy in the same way as cemented carbide.
- Grinding, cutting, and electrical discharge machining are possible.
Comparison of properties
| Material | Specific Gravity | Flexural Strength (MPa) | Hardness | Tensile Strength (MPa) | Young’s Modulus (GPa) | Thermal Conductivity (W/m·K) | Oxidation Increase (g/m²) | Corrosion Resistance (Ω/m², 24h) |
|---|---|---|---|---|---|---|---|---|
| FHR92 | 17.1 | 1200 | HRC 47.5 / HV 590 (9.8N) 490 / 460 | 630 / 620 / 600 | 310 | 51 | 4 | 100 |
| FHR96 | 17.6 | 1600 | HRC 34.5 / HV 390 (9.8N) 340 / 300 | 880 / 780 / 640 | 350 | 65 | 20 | 80 |
| FHR122 | 18.3 | 1500 | HRC 29.0 / HV 320 (9.8N) 190 / 160 | 850 / 700 / 410 | 250 | 79 | 41 | 3 |
| C70 | 14.0 | 2700 | HRC 68 / HV 1110 480 / 180 | 1800 / 1280 | 700 | 133 | 370 | 1 |
| U77 | 13.75 | 2100 | HRC 63 / HV 930 590 / 340 | 1400 / 1270 / 1030 | 530 | 115 | 223 | 9 |
| SKD61 | 7.8 | 2750 | HRC 54 / HV 580 320 | 2160 / 1600 | 206 | 31 | — | 0.05 |
